Garmin

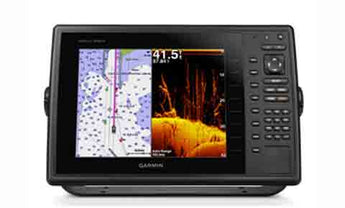

Garmin GPSMAP 1020xs 8 inch Pushbutton GPS Chartplotter Sonar Combo NO Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1020xs is the sonar combo version of the 1020, combining a 10 inch 800 x 600 SVGA display and pushbutton interface with a built in sonar that supports Garmin high definition DownVu and SideVu scanning sonar. The internal 10 Hz GPS/GLONASS receiver keeps your position and heading accurate, while the worldwide basemap and BlueChart g2 and LakeVu support cover navigation.
It networks through the Garmin Marine Network, NMEA 2000 and NMEA 0183, so you can add radar, autopilot, SiriusXM weather and other GPSMAP displays for a fully integrated helm. This unit is supplied without a transducer, allowing you to choose the right transducer for your boat.
PRODUCT DETAILS
- 10 inch SVGA colour display, 800 x 600 resolution, pushbutton control
- Built in sonar with Garmin DownVu and SideVu scanning sonar support
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Preloaded worldwide basemap, compatible with BlueChart g2 and LakeVu
- Networks via Garmin Marine Network, NMEA 2000 and NMEA 0183
- Supports radar, autopilot and SiriusXM weather
- Supplied without transducer; IPX7 housing with two SD card slots
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 21.1 x 15.8 cm (8.31 x 6.24 in.), 10 in. diagonal |
| Display resolution | SVGA, 800 x 600 pixels |
| Display type | Colour, pushbutton controlled |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
Sonar
| Built-in sonar | Built in sonar; supports Garmin DownVu and SideVu scanning sonar |
| Connection | 8-pin or 12-pin sonar port (transducer not included) |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183 |
| NMEA 2000 LEN | 2 @ 9 Vdc (100 mA max.) |
| Memory card | 2 SD card slots |
Physical
| Dimensions (W x H x D) | 360 x 236 x 75 mm (14.17 x 9.29 x 2.95 in.) |
| Weight | 2.2 kg (4.85 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 30 cm (11.8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 40 W |
| Typical current draw at 12 Vdc | 2.0 A |
| Max. current draw at 12 Vdc | 4.0 A |
| Fuse | 6 A, fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
