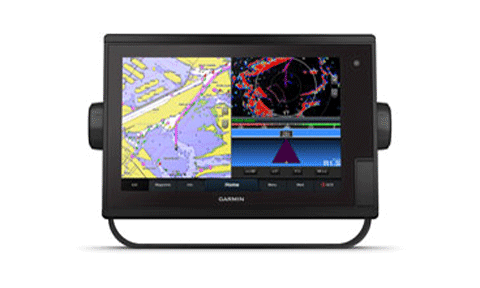

Garmin GPSMAP 1222 Plus
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 1222 Plus is a 12 inch touchscreen chartplotter that brings a big, bright helm display to mid-size and larger boats. The WXGA touchscreen runs a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times per second so charts and overlays stay smooth and accurate.
As the non-sonar model in the family it adds fishfinding through optional networked sonar modules, including Panoptix all-seeing sonar and LiveScope. It connects over the Garmin Marine Network, NMEA 2000 and NMEA 0183, with built-in Wi-Fi for ActiveCaptain, making it a capable hub for a connected system with radar, autopilots, sonar and sensors.
PRODUCT DETAILS
- 12 inch WXGA colour touchscreen with preloaded worldwide basemap
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Non-sonar model; supports optional networked sonar modules and Panoptix
- Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | GPSMAP 12x2 Plus |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 262.1 x 164.2 mm (10 5/16 x 6 7/16 in.), 12 in. diagonal |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | None; supports optional networked sonar modules including Panoptix all-seeing sonar |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 19.5 dBm maximum |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 329.7 x 227.3 x 77.2 mm (13 x 8 15/16 x 3 1/16 in.) |
| Weight | 2.72 kg (6.0 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 65 cm (25.6 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 36 W |
