Garmin GPSMap 1222 Touch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

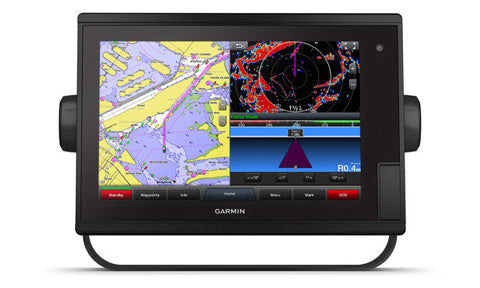

The GPSMAP 1222 Touch is a 12.1 inch multi-touch chartplotter designed for coastal cruisers who want a large, intuitive helm display. The WXGA touchscreen carries a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times a second for smooth, responsive navigation.
This is the non-sonar model, so fishfinding is added through a networked Garmin sonar module or transducer. It is fully network capable over the Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 for engine data, with built-in Wi-Fi for ActiveCaptain, allowing it to control radar, autopilots, sonar and digital switching across a connected system.
PRODUCT DETAILS
- 12.1 inch WXGA multi-touch colour touchscreen with worldwide basemap
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Non-sonar model; supports networked Garmin sonar modules and transducers
- Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 connectivity
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | GPSMAP 1222 Touch |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
| J1939 | J1939 engine data supported |
Display
| Display size | 26.2 x 16.3 cm (10.3 x 6.4 in.), 12.1 in. diagonal |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Multi-touch colour touchscreen |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module or transducer |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 15.26 dBm |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 33.0 x 22.6 x 7.9 cm (13.0 x 8.9 x 3.1 in.) |
| Weight | 2.72 kg (6.0 lb.) |
| Material | Die-cast aluminium and polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 36 W |
| Fuse | 6 A, 125 V fast-acting |
