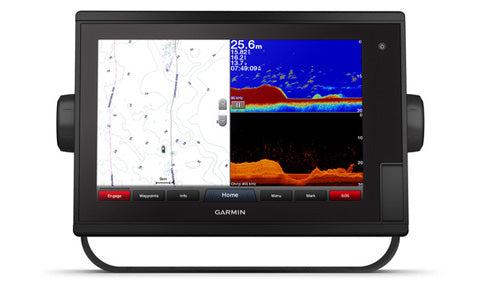

Garmin GPSMap 1222 xsv Touch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 1222xsv Touch pairs a 12.1 inch multi-touch chartplotter with a powerful built-in fishfinder, making it a strong choice for the coastal angler who wants a big, bright combo. The WXGA touchscreen carries a preloaded worldwide basemap, and an internal 10 Hz GPS keeps position and heading updating ten times a second.
Its integrated sonar delivers 1 kW CHIRP traditional plus Garmin ClearVu and SideVu scanning sonar, and it is compatible with Panoptix all-seeing sonar when the matching transducer is added. It is fully network capable over the Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939, with built-in Wi-Fi for ActiveCaptain, so it can run radar, autopilots, sonar modules and sensors from one helm.
PRODUCT DETAILS
- 12.1 inch WXGA multi-touch colour touchscreen with worldwide basemap
- Built-in 1 kW CHIRP traditional plus Garmin ClearVu and SideVu sonar
- Compatible with Panoptix all-seeing sonar
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 connectivity
- Built-in Wi-Fi for ActiveCaptain; IPX7 waterproof
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | GPSMAP 1222xsv Touch |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
| J1939 | J1939 engine data supported |
Display
| Display size | 26.2 x 16.3 cm (10.3 x 6.4 in.), 12.1 in. diagonal |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Multi-touch colour touchscreen |
Sonar
| Built-in sonar | Built-in 1 kW CHIRP traditional plus Garmin ClearVu and SideVu scanning sonar; also supports Panoptix sonar |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; Single-channel CHIRP 40-250 kHz; Garmin ClearVu CHIRP 260/455/800 kHz; SideVu CHIRP 260/455/800 kHz |
| Sonar transmit power (RMS) | CHIRP 1000 W; Garmin ClearVu and SideVu CHIRP 500 W |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 15.26 dBm |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 33.0 x 22.6 x 7.9 cm (13.0 x 8.9 x 3.1 in.) |
| Weight | 2.72 kg (6.0 lb.) |
| Material | Die-cast aluminium and polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
| Water rating | IEC 60529 IPX7 |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 36 W |
