Garmin
Garmin GPSMAP 722 Plus
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

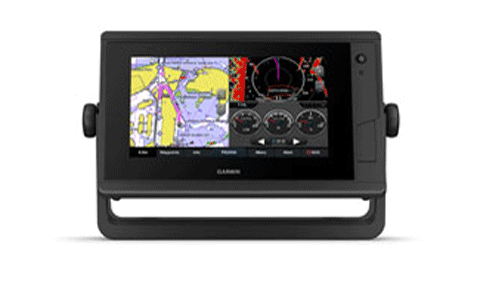

The GPSMAP 722 Plus is a 7 inch touchscreen chartplotter built for boaters who want a compact helm display that still acts as a full controller for a connected Garmin marine system. Its bright WVGA touchscreen drives a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times per second for smooth, responsive charting.
This is the non-sonar model in the 722 Plus family, so it relies on a networked Garmin sonar module or transducer when fishfinding is required. It connects over the Garmin Marine Network, NMEA 2000 and NMEA 0183, with built-in Wi-Fi for the ActiveCaptain app, and it can share radar, sonar, autopilot and sensor data across additional displays.
PRODUCT DETAILS
- 7 inch WVGA colour touchscreen with preloaded worldwide basemap
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Non-sonar model; supports networked Garmin sonar modules and transducers
- Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Series | GPSMAP 7x2 Plus |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 15.4 x 8.6 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module or transducer |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| NMEA 2000 LEN | 2 @ 9 Vdc |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 22.4 x 14.3 x 5.4 cm (8.8 x 5.6 x 2.1 in.) |
| Weight | 0.86 kg (1.9 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 71 cm (28 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 24 W |
| Fuse | 6 A, 125 V fast-acting |
