Garmin
Garmin GPSMAP 722xs includes GMR 18 HD Plus Bundle
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

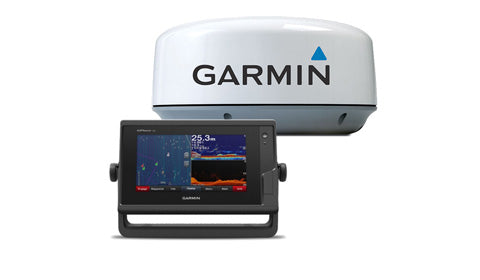

This bundle pairs the compact 7 inch GPSMAP 722xs touchscreen combo with a GMR 18 HD+ dome radar, giving smaller boats charting, sonar and radar from one helm. The chartplotter runs a preloaded worldwide basemap with an internal 10 Hz GPS, and its built-in sonar provides 1 kW CHIRP traditional plus Garmin ClearVu, with support for Panoptix.
The included GMR 18 HD+ radome delivers 4 kW of transmit power for clear echo definition across all ranges, and its images overlay onto the chartplotter for stronger situational awareness. The 722xs networks over the Garmin Marine Network, NMEA 2000 and NMEA 0183 with built-in Wi-Fi, so the system can grow to include autopilots, sonar modules and sensors.
PRODUCT DETAILS
- 7 inch GPSMAP 722xs touchscreen combo with worldwide basemap
- Built-in 1 kW CHIRP traditional and Garmin ClearVu sonar
- Includes GMR 18 HD+ dome radar with 4 kW transmit power
- Radar overlay onto the chartplotter for situational awareness
- Garmin Marine Network, NMEA 2000 and Wi-Fi connectivity
- Compatible with Panoptix all-seeing sonar
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Bundle contents | GPSMAP 722xs chartplotter/sonar combo and GMR 18 HD+ radome |
| Series | GPSMAP 7x2 |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 15.4 x 8.6 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | Built-in 1 kW CHIRP traditional and Garmin ClearVu scanning sonar; also supports Panoptix sonar |
| Sonar transmit power (RMS) | CHIRP 1000 W; Garmin ClearVu CHIRP 500 W |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Memory card | 2 SD card slots; 32 GB max. card size |
| Radar (included) | GMR 18 HD+ radome, 4 kW transmit power |
Physical
| Chartplotter dimensions (W x H x D) | 22.4 x 14.3 x 5.4 cm (8.8 x 5.6 x 2.1 in.) |
| Chartplotter weight | 0.86 kg (1.9 lb.) |
| Chartplotter water rating | IEC 60529 IPX7 |
