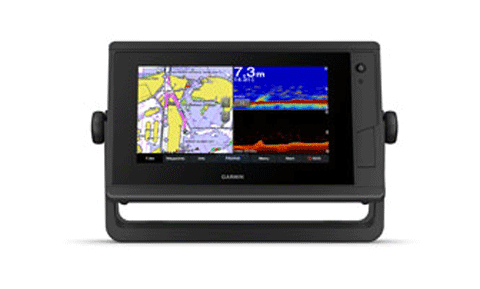

Garmin GPSMAP 722xs Plus
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 722xs Plus packs a 7 inch touchscreen chartplotter and a built-in fishfinder into a compact helm unit. The bright WVGA display carries a preloaded worldwide basemap, and an internal 10 Hz GPS keeps position and heading updating ten times a second for smooth, accurate navigation.
Its integrated sonar provides 1 kW CHIRP traditional plus Garmin ClearVu scanning sonar, and it is also compatible with Panoptix all-seeing sonar including LiveScope when the matching transducer is added. The unit networks over the Garmin Marine Network, NMEA 2000 and NMEA 0183, with built-in Wi-Fi for ActiveCaptain, so it can sit at the centre of a multi-display system with radar, autopilots and sensors.
PRODUCT DETAILS
- 7 inch WVGA colour touchscreen with preloaded worldwide basemap
- Built-in 1 kW CHIRP traditional and Garmin ClearVu scanning sonar
- Compatible with Panoptix all-seeing sonar including LiveScope
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Garmin Marine Network, NMEA 2000 and Wi-Fi connectivity
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Series | GPSMAP 7x2 Plus |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 15.4 x 8.6 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | Built-in 1 kW CHIRP traditional and Garmin ClearVu scanning sonar; also supports Panoptix sonar |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; Single-channel CHIRP 40-250 kHz; Garmin ClearVu CHIRP 260/455/800 kHz |
| Sonar transmit power (RMS) | CHIRP 1000 W; Garmin ClearVu CHIRP 500 W |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 22.4 x 14.3 x 5.4 cm (8.8 x 5.6 x 2.1 in.) |
| Weight | 0.86 kg (1.9 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 71 cm (28 in.) |
| Water rating | IEC 60529 IPX7 |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 24 W |
