Garmin
Garmin GPSMap 7408xsv J1939 8 inch Touchscreen Multifunction Display with Built in Sonar
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

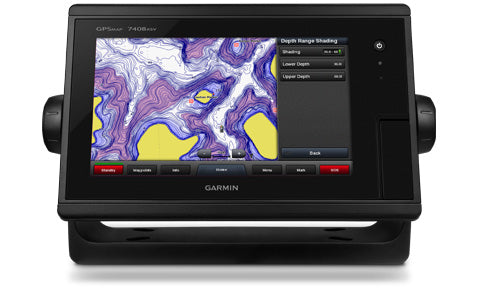

The GPSMAP 7408xsv is an 8 inch multi-touch glass-helm chartplotter and sonar combo for anglers and cruisers who want strong performance and full system integration. Its widescreen touchscreen carries a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times per second.
Built-in sonar provides dual-channel 1 kW CHIRP traditional plus Garmin CHIRP ClearVu and SideVu scanning sonar for clear detail below and beside the boat. It is fully network capable over the Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939, with built-in Wi-Fi, ANT and Bluetooth, so it can run radar, autopilots, sonar modules and sensors from one helm.
PRODUCT DETAILS
- 8 inch multi-touch widescreen display with worldwide basemap
- Built-in dual 1 kW CHIRP traditional plus ClearVu and SideVu sonar
- Internal 10 Hz GPS for fast position and heading updates
- Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 connectivity
- Built-in Wi-Fi, ANT and Bluetooth
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Series | GPSMAP 7400/7600 (7x08) |
| Control | Multi-touch touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
| J1939 | J1939 engine data supported |
Display
| Display size | 17.8 x 10.2 cm (7.0 x 4.0 in.), 8 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Multi-touch widescreen colour display |
Sonar
| Built-in sonar | Built-in dual-channel 1 kW CHIRP traditional plus Garmin CHIRP ClearVu (DownVu) and CHIRP SideVu scanning sonar |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; CHIRP 40-250 kHz; ClearVu/SideVu CHIRP 260/455/800 kHz (transducer dependent) |
| Sonar transmit power | 1 kW (dual CHIRP), transducer dependent |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, Wi-Fi |
| Wireless frequency and protocols | Wi-Fi, ANT and Bluetooth; 2.4 GHz @ 19.5 dBm nominal |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 24.4 x 16.0 x 7.6 cm (9.6 x 6.3 x 3.0 in.) |
| Weight | 1.41 kg (3.1 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 70 cm (27.6 in.) |
| Water rating | IEC 60529 IPX7 |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
