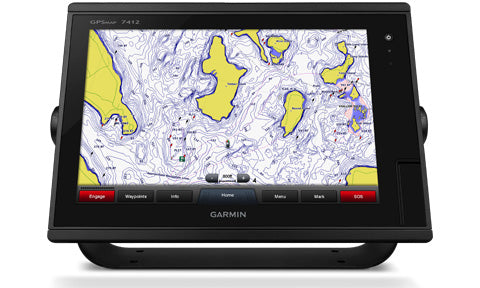

Garmin GPSMap 7412 J1939 12 inch Touchscreen Multifunction Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 7412 is a 12 inch multi-touch glass-helm chartplotter for powerboaters and sailors who want a big, bright display with deep system integration. Its widescreen touchscreen carries a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times per second for smooth, responsive charting.
As the non-sonar model in the 7400 series it adds fishfinding through a networked Garmin sonar module. It is fully network capable over the Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939, with built-in Wi-Fi, ANT and Bluetooth, allowing it to share radar, sonar, autopilot and sensor data across additional displays.
PRODUCT DETAILS
- 12 inch multi-touch widescreen display with worldwide basemap
- Internal 10 Hz GPS for fast position and heading updates
- Non-sonar model; supports networked Garmin sonar modules
- Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 connectivity
- Built-in Wi-Fi, ANT and Bluetooth
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Series | GPSMAP 7400/7600 (7x12) |
| Control | Multi-touch touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
| J1939 | J1939 engine data supported |
Display
| Display size | 26.2 x 16.3 cm (10.3 x 6.4 in.), 12 in. diagonal |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Multi-touch widescreen colour display |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module or transducer |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 19.5 dBm nominal |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 33.0 x 22.6 x 7.9 cm (13.0 x 8.9 x 3.1 in.) |
| Weight | 2.72 kg (6.0 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 65 cm (25.6 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 36 W |
| Fuse | 6 A, 125 V fast-acting |
