Garmin

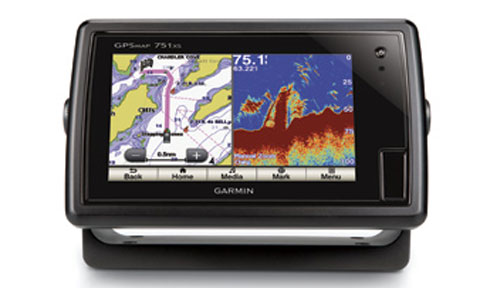

Garmin GPSMAP 751xs Touch Screen GPS Chartplotter Sonar Combo with UK Cartography NO Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 751xs is the sonar combo version of the 751, supplied with detailed UK and Ireland BlueChart cartography preloaded and a built in sonar that supports Garmin high definition DownVu and SideVu scanning sonar. The 7 inch WVGA touchscreen with pinch to zoom and a 10 Hz internal GPS receiver keep navigation fast, clear and accurate.
It works with the Garmin Marine Network, NMEA 2000 and NMEA 0183, and supports radar, AIS, DSC, autopilot and networked sonar for a fully connected helm. An external GPS antenna can be added for flush mount installs. This unit is supplied without a transducer, so you can choose the right one for your boat.
PRODUCT DETAILS
- 7 inch WVGA touchscreen with pinch to zoom, 800 x 480 resolution
- Built in sonar with Garmin DownVu and SideVu scanning sonar support
- Preloaded UK and Ireland BlueChart cartography
- Internal 10 Hz high sensitivity GPS receiver
- Works with Garmin Marine Network, NMEA 2000 and NMEA 0183
- Supports radar, AIS, DSC, autopilot and networked sonar
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 15.3 x 8.5 cm (6.0 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour touchscreen |
GPS/GNSS
| GPS receiver | Internal 10 Hz high sensitivity GPS; external GPS antenna supported |
| Preloaded charts | UK and Ireland BlueChart cartography |
| Waypoints / routes | 5,000 waypoints; 100 routes |
Sonar
| Built-in sonar | Built in sonar; supports Garmin DownVu and SideVu scanning sonar |
| Connection | 8-pin or 12-pin sonar port (transducer not included) |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183 |
| NMEA 2000 LEN | 2 @ 9 Vdc (100 mA max.) |
Physical
| Dimensions (W x H x D) | 230 x 143 x 58 mm (9.06 x 5.63 x 2.28 in.) |
| Weight | 1.048 kg (2.31 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 45 cm (17.75 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
| Typical current draw at 12 Vdc | 1.3 A |
| Fuse | 3 A, fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
