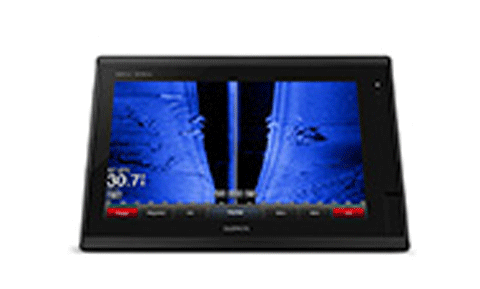

Garmin GPSMAP 7616xsv
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 7616xsv is a 16 inch multi-touch glass-helm chartplotter and sonar combo for sportfishers, cruisers and sailing racers who want a large display and powerful fishfinding. Its widescreen touchscreen carries a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times per second.
Built-in sonar provides dual-channel 1 kW CHIRP traditional plus Garmin CHIRP ClearVu and SideVu scanning sonar, and it also supports Minn Kota and MotorGuide trolling-motor transducers. It is fully network capable over the Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939, with built-in Wi-Fi, ANT and Bluetooth, so it can run radar, autopilots, sonar modules and sensors from one helm.
PRODUCT DETAILS
- 16 inch multi-touch widescreen display with worldwide basemap
- Built-in dual 1 kW CHIRP traditional plus ClearVu and SideVu sonar
- Supports Minn Kota and MotorGuide trolling-motor transducers
- Internal 10 Hz GPS for fast position and heading updates
- Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 connectivity
- Built-in Wi-Fi, ANT and Bluetooth; IPX7 waterproof
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | GPSMAP 7400/7600 (7x16) |
| Control | Multi-touch touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
| J1939 | J1939 engine data supported |
Display
| Display size | 34.5 x 19.3 cm (13.6 x 7.6 in.), 16 in. diagonal |
| Display resolution | WXGA, 1024 x 800 pixels |
| Display type | Multi-touch widescreen colour display |
Sonar
| Built-in sonar | Built-in dual-channel 1 kW CHIRP traditional plus Garmin CHIRP ClearVu (DownVu) and CHIRP SideVu scanning sonar; supports Minn Kota and MotorGuide trolling-motor transducers |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; CHIRP 40-250 kHz; ClearVu/SideVu CHIRP 260/455/800 kHz (transducer dependent) |
| Sonar transmit power | 1 kW (dual CHIRP), transducer dependent |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, Wi-Fi |
| Wireless frequency and protocols | Wi-Fi, ANT and Bluetooth; 2.4 GHz @ 19.5 dBm nominal |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 42.7 x 27.5 x 8.6 cm (16.8 x 10.8 x 3.4 in.) |
| Weight | 4.3 kg (9.5 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 85.0 cm (33.5 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 57.2 W |
| Fuse | 8 A, 125 V fast-acting |
