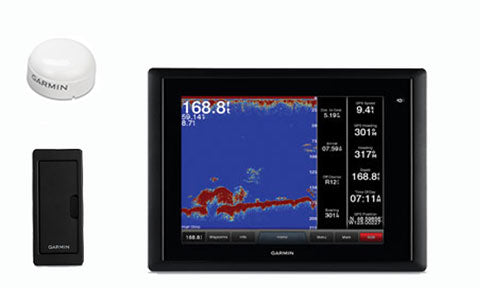

Garmin GPSMAP 8012 12 inch Touchscreen MFD with GPS Antenna
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8012 is a 12.1 inch glass-helm multifunction display from the original Garmin GPSMAP 8000 series. Its bright, anti-glare XGA touchscreen comes preloaded with a worldwide satellite-enhanced basemap and offers intuitive pinch-to-zoom and touch control, with a 10 Hz GPS, fed by the included external antenna, updating position and heading ten times per second.
Designed as the hub of an integrated helm, it networks over the Garmin Marine Network, NMEA 2000 and NMEA 0183 to add radar, networked sonar, autopilots, cameras and sensors. The display itself carries no internal sonar; fishfinding is added through a compatible Garmin sonar module on the network.
PRODUCT DETAILS
- 12.1 inch anti-glare XGA touchscreen with worldwide satellite basemap
- 10 Hz GPS via included external antenna
- Glass-helm multifunction display for an integrated system
- Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity
- No internal sonar; supports networked Garmin sonar modules
- IPX7 waterproof
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Series | GPSMAP 8000 glass helm |
| Control | Touchscreen |
| Preloaded charts | Worldwide satellite-enhanced basemap |
| GPS | 10 Hz GPS/GLONASS via external antenna (included) |
Display
| Display size | 24.6 x 18.4 cm (9.7 x 7.3 in.), 12.1 in. diagonal |
| Display resolution | XGA, 1024 x 768 pixels |
| Display type | Anti-glare colour touchscreen |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183 |
| Memory card | Built-in card reader (SD) |
Physical
| Dimensions (W x H x D) | 33.2 x 24.7 x 9.6 cm (13.1 x 9.7 x 3.8 in.) |
| Weight | 5.2 kg (11.4 lb.) |
| Water rating | IPX7 |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 35 W |
| Typical current draw at 12 Vdc | 1.6 A |
