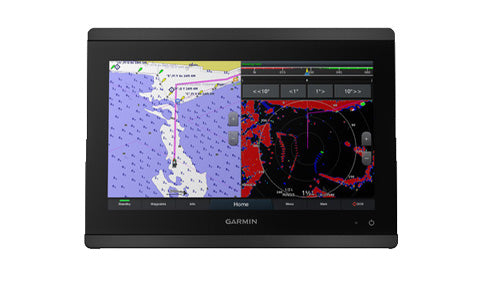

Garmin GPSMAP 8412 12 Inch Chartplotter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8412 delivers premium glass-helm performance on a generous 11.6-inch screen, ideal for cruisers, sailors and sail racers who want a fully networked helm. The full HD IPS touchscreen provides wide viewing angles, superior clarity and sunlight readability, even through polarised sunglasses. The maximum-glass design lets you flat mount multiple displays edge-to-edge for a seamless look, or flush mount with an exceptionally low profile.
Built-in Wi-Fi, ANT and NMEA 2000 connectivity tie the 8412 into the Garmin Marine Network, so radar, sonar, cameras and instrument data can be shared across helms. OneHelm compatibility extends touchscreen control to supported third-party systems such as digital switching and lighting. Dual microSD slots handle charts and data, and the rugged IPX7-rated housing is built for life on the water.
PRODUCT DETAILS
- 11.6-inch full HD IPS touchscreen (1920 x 1080) with wide viewing angles and sunlight readability
- Maximum-glass design for edge-to-edge flat mounting or low-profile flush mounting
- Premium networked glass-helm multifunction display for the helm
- Built-in Wi-Fi and ANT connectivity with the Garmin Marine Network and NMEA 2000
- OneHelm compatible for integrated control of supported third-party onboard systems
- Dual microSD card slots (32 GB max) for charts and data
- IPX7 waterproof rating with rugged polycarbonate and die-cast aluminium construction
- GPSMAP 8412 multifunction display
- Flush mount kit and gasket
- Bail mount and knobs
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 257.3 x 145.2 mm (11.6 in. diagonal) |
| Display resolution | FHD, 1920 x 1080 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 302.8 x 216.4 x 76.5 mm |
| Dimensions on bail mount (W x H x D) | 323.9 x 216.4 x 104.5 mm |
| Weight | 2.7 kg (6.0 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 35 cm (13.8 in.) |
| Clearance behind flush-mounted device | 11.1 cm (4 3/8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 45 W |
| Typical current draw at 12 Vdc | 1.3 A |
| Max. current draw at 12 Vdc | 6.0 A |
| Fuse | 10 A, 125 V fast-acting |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi and ANT technologies; 2.4 GHz @ 12.3 dBm nominal |
| Memory card | 2 microSD card slots, 32 GB max. card size |
| HTML integration | Compatible with OneHelm integration |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 (250 waypoints each) |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
