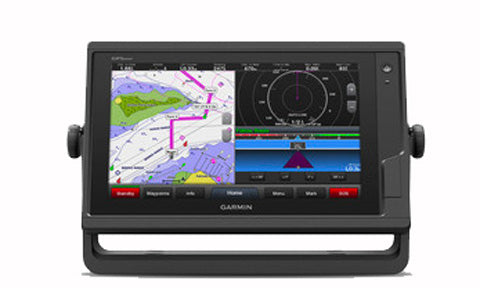

Garmin GPSMAP 922 Chartplotter with 9 inch Touchscreen
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 922 brings a larger 9 inch sunlight readable WSVGA touchscreen to the GPSMAP range, giving you more room to view charts, sonar overlays and instrument data at a glance. The internal 10 Hz GPS/GLONASS receiver updates position and heading ten times per second, and the responsive touch interface makes route planning and waypoint marking quick and simple.
Preloaded with a worldwide basemap and ready for BlueChart g3 and LakeVu cartography, the 922 integrates fully through the Garmin Marine Network, NMEA 2000, NMEA 0183 and built in Wi-Fi. Connect radar, autopilot, sensors and the ActiveCaptain app to build a complete helm. This is the chart only model with no built in sonar.
PRODUCT DETAILS
- 9 inch sunlight readable WSVGA touchscreen, 1024 x 600 resolution
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Preloaded worldwide basemap, ready for BlueChart g3 and LakeVu charts
- Connects via Garmin Marine Network, NMEA 2000, NMEA 0183 and Wi-Fi
- Supports radar, autopilot, sensors and the ActiveCaptain app
- Chart only model, no built in sonar (networked sonar supported)
- Rugged IPX7 waterproof housing with two SD card slots
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 19.6 x 11.4 cm (7.7 x 4.5 in.), 9 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour touchscreen |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
General
| Built-in sonar | None; networked sonar supported via compatible Garmin module or transducer |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max.) |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 25.6 x 16.2 x 5.2 cm (10.1 x 6.4 x 2.1 in.) |
| Weight | 1.14 kg (2.5 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 76 cm (30 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
| Typical current draw at 12 Vdc | 1.3 A |
| Max. current draw at 12 Vdc | 2.3 A |
| Fuse | 6 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
