Garmin

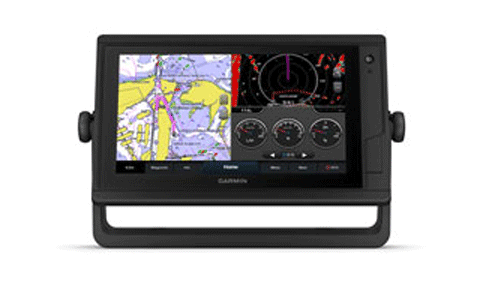

Garmin GPSMAP 922 Plus
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 922 Plus is a 9 inch touchscreen chartplotter that gives mid-size helms a clear, fast display and full control over a connected Garmin marine system. Its WSVGA touchscreen runs a preloaded worldwide basemap, while an internal 10 Hz GPS updates position and heading ten times per second for smooth, dependable charting.
As the non-sonar model in the 922 Plus family it uses a networked Garmin sonar module or transducer when fishfinding is needed. It connects over the Garmin Marine Network, NMEA 2000 and NMEA 0183, with built-in Wi-Fi for the ActiveCaptain app, and shares radar, sonar, autopilot and sensor data across additional displays.
PRODUCT DETAILS
- 9 inch WSVGA colour touchscreen with preloaded worldwide basemap
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Non-sonar model; supports networked Garmin sonar modules and transducers
- Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | GPSMAP 9x2 Plus |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 19.6 x 11.4 cm (7.7 x 4.5 in.), 9 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module or transducer |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions with cover on bail mount (W x H x D) | 289.4 x 181.1 x 73.8 mm (11 3/8 x 7 1/8 x 2 15/16 in.) |
| Weight | 1.27 kg (2.8 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 76 cm (30 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
