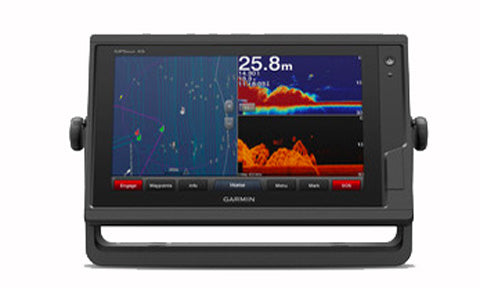

Garmin GPSMAP 922xs Chartplotter Sonar Combo with 9 inch Touchscreen
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 922xs adds full sonar to the 9 inch GPSMAP platform, combining a sunlight readable WSVGA touchscreen with built in 1 kW CHIRP traditional sonar and Garmin ClearVu scanning sonar. The internal 10 Hz GPS/GLONASS receiver keeps your position and heading accurate, and the worldwide basemap with support for BlueChart g3 and LakeVu charts covers navigation worldwide.
Networking through the Garmin Marine Network, NMEA 2000, NMEA 0183 and Wi-Fi lets you add radar, autopilot, Panoptix sonar, sensors and the ActiveCaptain app for a fully integrated helm. This unit is supplied without a transducer, so you can fit the transducer best suited to your boat.
PRODUCT DETAILS
- 9 inch sunlight readable WSVGA touchscreen, 1024 x 600 resolution
- Built in 1 kW CHIRP traditional sonar plus Garmin ClearVu scanning sonar
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Preloaded worldwide basemap, ready for BlueChart g3 and LakeVu charts
- Connects via Garmin Marine Network, NMEA 2000, NMEA 0183 and Wi-Fi
- Also supports Panoptix sonar, radar, autopilot and ActiveCaptain
- Supplied without transducer; IPX7 housing with two SD card slots
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 19.6 x 11.4 cm (7.7 x 4.5 in.), 9 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour touchscreen |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | 1 kW CHIRP traditional and Garmin ClearVu scanning sonar; also supports Panoptix |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; CHIRP 40-250 kHz; ClearVu CHIRP 260/455/800 kHz |
| Sonar transmit power (RMS) | CHIRP 1000 W; ClearVu CHIRP 500 W |
| Sonar depth | 5,000 ft. at 1 kW (transducer dependent) |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max.) |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 25.6 x 16.2 x 5.2 cm (10.1 x 6.4 x 2.1 in.) |
| Weight | 1.14 kg (2.5 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 76 cm (30 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
| Fuse | 6 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
