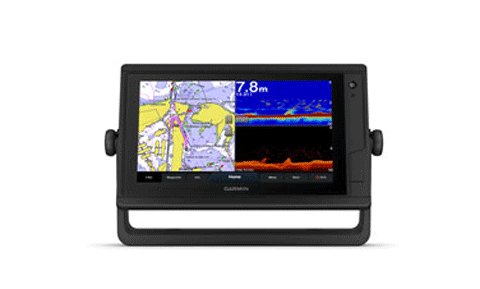

Garmin GPSMAP 922xs Plus
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 922xs Plus combines a 9 inch touchscreen chartplotter with a built-in fishfinder for mid-size helms. Its WSVGA display carries a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times a second for smooth, precise navigation.
The integrated sonar offers 1 kW CHIRP traditional plus Garmin ClearVu scanning sonar, and the unit is also compatible with Panoptix all-seeing sonar including LiveScope when the matching transducer is fitted. It networks over the Garmin Marine Network, NMEA 2000 and NMEA 0183, with built-in Wi-Fi for ActiveCaptain, so it can anchor a multi-display system with radar, autopilots and sensors.
PRODUCT DETAILS
- 9 inch WSVGA colour touchscreen with preloaded worldwide basemap
- Built-in 1 kW CHIRP traditional and Garmin ClearVu scanning sonar
- Compatible with Panoptix all-seeing sonar including LiveScope
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Garmin Marine Network, NMEA 2000 and Wi-Fi connectivity
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | GPSMAP 9x2 Plus |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 19.6 x 11.4 cm (7.7 x 4.5 in.), 9 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | Built-in 1 kW CHIRP traditional and Garmin ClearVu scanning sonar; also supports Panoptix sonar |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; Single-channel CHIRP 40-250 kHz; Garmin ClearVu CHIRP 260/455/800 kHz |
| Sonar transmit power (RMS) | CHIRP 1000 W; Garmin ClearVu CHIRP 500 W |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions with cover on bail mount (W x H x D) | 289.4 x 181.1 x 73.8 mm (11 3/8 x 7 1/8 x 2 15/16 in.) |
| Weight | 1.27 kg (2.8 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 76 cm (30 in.) |
| Water rating | IEC 60529 IPX7 |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
