Garmin gWind Wireless Wind Pack with GND10 WSI Box and Transducer
£0.00
/
Tax included.
Shipping calculated at checkout.
010-01248-00

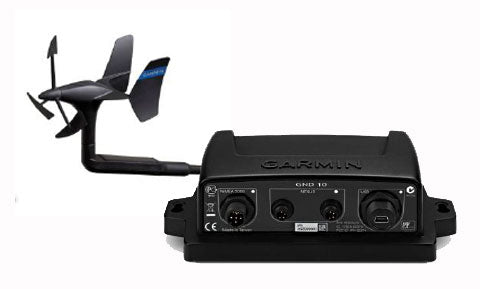

The Garmin gWind Wireless Wind Pack combines a gWind Wireless masthead transducer, a WSI connection box and a GND 10 bridge to deliver wireless wind data to compatible Garmin chartplotters over NMEA 2000.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin gWind Wireless Wind Pack is a complete wireless wind solution for sailors. At the masthead, the gWind Wireless transducer measures wind speed and angle and transmits the data by dedicated radio signal, so there is no wiring to run through the mast. A WSI connection box receives those signals, and the included GND 10 black box bridge shares the wind data with compatible Garmin chartplotters across a NMEA 2000 network. The transducer measures wind from 0.9 to 90 knots and is rated to IPX6 for protection against heavy seas. Together the three components give you a clean, cable-free way to add accurate wind information to a Garmin system.
PRODUCT DETAILS
- Complete wireless wind solution: gWind Wireless transducer, WSI connection box and GND 10 bridge
- Masthead transducer sends wind data wirelessly, with no wiring through the mast
- WSI connection box receives dedicated radio signals from the transducer
- GND 10 shares wind data with compatible Garmin chartplotters over NMEA 2000
- Measures wind speed and angle from 0.9 to 90 knots
- Transducer rated to IPX6 for protection against heavy seas
- gWind Wireless masthead transducer
- WSI connection box
- GND 10 black box bridge
- Masthead mounting bracket and hardware
- Cabling and connectors
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pack Contents | gWind Wireless transducer, WSI connection box and GND 10 black box bridge |
Sensor
| Wind Speed Range | 0.9 to 90 kn (0.5 to 50 m/s) |
Connectivity
| Wireless Link | WSI box receives dedicated radio signals from the masthead transducer; GND 10 shares data with NMEA 2000 |
| Network | Bridges to NMEA 2000 via GND 10 (NMEA 2000 LEN 4) |
Environmental
| Transducer Water Resistance | IEC 60529 IPX6 (protected against heavy seas) |
No videos available for this product.
What is included in the gWind Wireless Wind Pack?
A gWind Wireless masthead transducer, a WSI connection box that receives the transducer's radio signals, and a GND 10 black box bridge that shares the data with NMEA 2000.
How does this pack share wind data with a chartplotter?
The WSI box receives wireless signals from the masthead transducer, and the GND 10 bridges that data onto a NMEA 2000 network so compatible Garmin chartplotters can display it.
What wind speed range does the transducer measure?
From 0.9 to 90 knots (0.5 to 50 m/s).
Does it require wiring through the mast?
No. The masthead transducer is wireless, so no signal wiring needs to be run through the mast.
