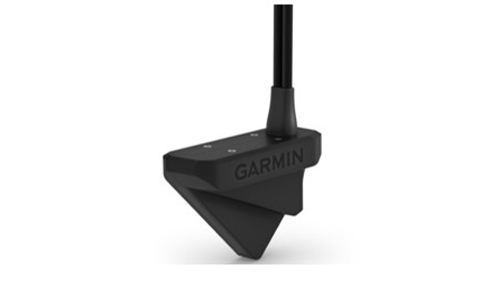

Garmin Panoptix LVS32 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Panoptix LiveScope LVS32 transducer brings Garmin's live scanning sonar to your boat, showing easy-to-interpret real-time images of fish swimming around clearly defined structure. You can even watch your lure as you retrieve it, and the boat does not need to be moving. A single click of the mount changes the view between LiveScope Forward, to see ahead of the boat, and LiveScope Down, to see directly below, with a wide 135-degree front-to-back by 20-degree side-to-side field of view. A built-in AHRS sensor and compass keep the sonar picture stable as the boat moves. Operating from 530 kHz to 1.1 MHz with up to 61 m of range, the LVS32 connects to a compatible Garmin chartplotter through the Panoptix LiveScope GLS 10 sonar black box, and ships with trolling-motor barrel, trolling-motor shaft and transom mounts.
PRODUCT DETAILS
- Live, real-time LiveScope scanning sonar shows fish, structure and even your lure moving below and around the boat
- Switch between LiveScope Forward and LiveScope Down views with a single click of the mount, no tools required
- 135-degree front-to-back by 20-degree side-to-side field of view for wide, detailed coverage
- 530 kHz to 1.1 MHz operation with up to 61 m (200 ft) range
- Built-in AHRS sensor and compass stabilise the sonar image as the boat moves
- Includes trolling-motor barrel, trolling-motor shaft and transom mounts for flexible installation
- Connects through the Panoptix LiveScope GLS 10 sonar black box to a compatible Garmin chartplotter
- Panoptix LiveScope LVS32 transducer
- Trolling-motor barrel mount
- Trolling-motor shaft mount
- Transom mount
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Sonar
| Sonar type | Live, real-time scanning sonar (Panoptix LiveScope) |
| Viewing modes | LiveScope Forward and LiveScope Down (Perspective view available by adding the optional Panoptix LiveScope Perspective Mode Mount) |
| Frequency | 530 kHz to 1.1 MHz |
| Maximum depth/range | 61 m (200 ft); dependent upon water salinity, bottom type and other water conditions |
| Field of view (beam coverage) | Front to back: 135 degrees; side-to-side: 20 degrees |
Connectivity
| Network connection | Connects to the Panoptix LiveScope GLS 10 sonar black box (transducer XDCR port); the GLS 10 connects to a compatible Garmin chartplotter via the Garmin Marine Network |
| Compass / stabilisation | Built-in AHRS sensor and internal compass for sonar image stabilisation (calibration required) |
Mounting
| Mounting options | Trolling-motor barrel mount, trolling-motor shaft mount (8-degree cant bracket) and transom mount included; optional spray shield (010-12406-00) and Perspective Mode Mount available |
Physical
| Dimensions (L x H x W) | 136.4 x 96.5 x 44.5 mm (5.37 x 3.8 x 1.75 in) |
| Weight (transducer only) | 850 g (1.87 lb) |
General
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
