Garmin
Garmin P72 In Hull Depth 200kHz Transducer 6 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

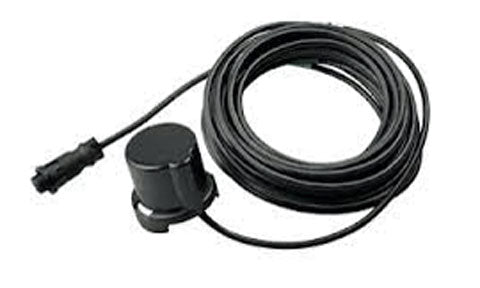

The P72 is a compact plastic trolling-mount transducer that is equally at home mounted in the hull, on a trolling motor or set up for ice fishing. Its small size and light weight make it easy to fit and remove, and it gives reliable depth and temperature data for freshwater and inshore use.
It operates at a single 200 kHz frequency, reaches depths of 900 ft and uses a 15 degree beam for focused returns directly below the transducer. The unit draws 250 W and terminates in a 6-pin connector on a 15 ft cable.
The P72 is a single-frequency transducer for use with compatible Garmin fishfinder and GPSMAP sounder units. Always follow the supplied installation instructions to avoid damaging your boat.
PRODUCT DETAILS
- Compact plastic transducer for in-hull, trolling-motor or ice-fishing use
- Single 200 kHz operating frequency with a 15 degree beam
- Depth capability of 900 ft, reports depth and temperature
- 250 W; 6-pin connector on a 15 ft cable
- Small and light, easy to fit and remove
- For use with compatible Garmin fishfinder and GPSMAP sounder units
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Model | Airmar P72 |
| Mounting type | In-hull / trolling-motor mount |
| Functions | Depth and temperature |
Sonar
| Operating frequency | 200 kHz |
| Power | 250 W RMS |
| Beamwidth (-3dB) | 15 degrees |
| Maximum depth | 900 ft |
Physical
| Housing material | Plastic |
| Connector | 6-pin |
| Cable length | 15 ft |
Compatibility
| Compatibility | Single-frequency 200 kHz transducer for compatible Garmin fishfinder and GPSMAP sounder units. Suited to in-hull mounting, trolling motors or ice fishing. |
