Garmin Panoptix LiveScope System
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

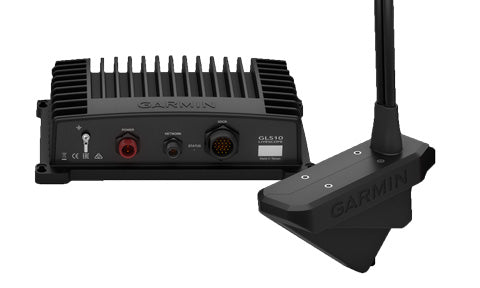

The Panoptix LiveScope System is among the most remarkable sonar technologies on the water, letting you watch live, real-time scanning sonar images of fish swimming around clearly defined structure. You can even see your lure as you retrieve it, and the boat does not need to be moving. The system combines the GLS 10 sonar black box with the LVS32 transducer, which offers LiveScope Forward and LiveScope Down views that change with a single click of the mount and no tools. A wide 135-degree front-to-back by 20-degree side-to-side field of view and up to 61 m of range reveal exactly what is happening below, while a built-in AHRS sensor and compass keep the picture steady as the boat moves. Trolling-motor barrel, shaft and transom mounts are supplied, and the GLS 10 connects to a compatible Garmin chartplotter over the Garmin Marine Network.
PRODUCT DETAILS
- Complete Panoptix LiveScope system: GLS 10 sonar black box plus LVS32 scanning transducer
- Live, real-time scanning sonar shows fish, structure and your lure beneath and around the boat, even at rest
- LiveScope Forward and LiveScope Down views, changed with a single click of the mount
- 135-degree front-to-back by 20-degree side-to-side field of view, up to 61 m (200 ft) range
- Built-in AHRS sensor and compass keep the sonar image stable as the boat moves
- Includes trolling-motor barrel, shaft and transom mounts plus Garmin Marine Network cabling
- Connects to a compatible Garmin chartplotter over the Garmin Marine Network
- Panoptix LiveScope GLS 10 sonar black box
- Panoptix LiveScope LVS32 transducer
- Trolling-motor barrel mount
- Trolling-motor shaft mount
- Transom mount
- Power cable
- 2 m Garmin Marine Network cable (small connector)
- Garmin Marine Network adapter cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| System contents | Panoptix LiveScope GLS 10 sonar black box plus Panoptix LiveScope LVS32 transducer |
| Water rating | IPX7 |
| Operating temperature (transducer) | 0 to 40°C (32 to 104°F) |
Sonar
| Sonar type | Live, real-time scanning sonar (Panoptix LiveScope) |
| Viewing modes | LiveScope Forward and LiveScope Down (Perspective view available by adding the optional Perspective Mode Mount) |
| Frequency | 530 kHz to 1.1 MHz |
| Maximum depth/range | 61 m (200 ft); dependent upon water salinity, bottom type and other water conditions |
| Field of view (beam coverage) | Front to back: 135 degrees; side-to-side: 20 degrees |
Connectivity
| Network connection | GLS 10 sonar black box connects to a compatible Garmin chartplotter via the Garmin Marine Network (Garmin Marine Network adapter cable 010-12531-01 included); LVS32 transducer plugs into the GLS 10 XDCR port |
| Compass / stabilisation | Built-in AHRS sensor and internal compass for sonar image stabilisation (calibration required) |
Mounting
| Transducer mounting options | Trolling-motor barrel mount, trolling-motor shaft mount (8-degree cant bracket) and transom mount included |
Physical
| Transducer dimensions (L x H x W) | 136.4 x 96.5 x 44.5 mm (5.37 x 3.8 x 1.75 in) |
| Transducer weight (transducer only) | 850 g (1.87 lb) |
| GLS 10 sonar black box dimensions (W x H x D) | 245 x 149 x 65 mm (9.7 x 5.9 x 2.6 in) |
| GLS 10 sonar black box weight | 1.96 kg (4.33 lb) |
Electrical
| GLS 10 power input | 10 to 32 Vdc |
| GLS 10 power usage | 21 W typical, 58 W maximum |
