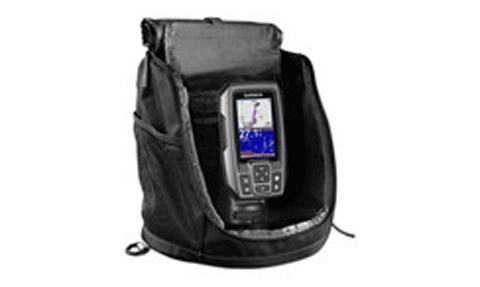

Garmin Striker 4 Portable Bundle
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER 4 Portable Bundle packs the compact 3.5-inch STRIKER 4 fishfinder into a rugged carrying case with everything needed to fish away from a fixed installation, making it ideal for a kayak, canoe, hired boat or ice fishing. Dual-beam Garmin CHIRP traditional sonar delivers crisp fish arches, while the built-in, high-sensitivity GPS marks and returns you to hot spots, ramps and docks and shows your speed.
The portable kit adds a sealed rechargeable battery and charger, a suction-cup transducer mount and float, and tidy cable storage, so the whole system travels in one case. It is a fishfinder rather than a chartplotter, so no charts are preloaded, but waypoints and routes can be shared with other STRIKER and echoMAP units.
PRODUCT DETAILS
- Portable bundle in a rugged carrying case for travel and ice fishing
- 3.5-inch STRIKER 4 with dual-beam Garmin CHIRP traditional sonar
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Includes sealed rechargeable battery and charger
- Suction-cup transducer mount and float plus tilt/swivel mount
- Built-in flasher for vertical and ice fishing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Portable fishfinder bundle with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
| In the bundle | STRIKER 4, portable carrying case, sealed rechargeable battery and charger, dual-beam CHIRP (77/200 kHz) transducer, suction-cup transducer mount and float, tilt/swivel mount |
Display
| Display size | 3.5 in. (8.9 cm) diagonal |
| Display resolution | 480 x 320 pixels |
| Display type | HVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar (dual-beam) |
| Sonar frequencies | 77/200 kHz CHIRP |
| Transmit power | 200 W (RMS), 1,600 W (peak-to-peak) |
| Maximum depth | 1,600 ft (488 m) freshwater; 750 ft (229 m) saltwater |
| Sonar features | Built-in flasher, Sonar History Rewind, Smooth Scaling, A-scope, split-screen zoom |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Waypoint sharing | Share waypoints and routes with other STRIKER and echoMAP units |
Physical
| Device dimensions (W x H x D) | 8.9 x 15.6 x 4.3 cm (3.6 x 6.1 x 1.7 in.) |
| Device weight | 0.23 kg (8.1 oz) |
| Water rating | IEC 60529 IPX7 (head unit) |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 10 to 20 Vdc; rated current 1 A; portable kit includes rechargeable battery |
