Garmin

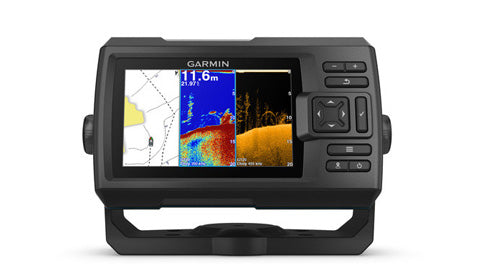

Garmin Striker Plus 5cv No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This is the head-unit-only version of the STRIKER Plus 5cv, supplied without a transducer for anglers who already own a compatible Garmin CHIRP transducer or wish to choose their own. The bright 5-inch WVGA display supports Garmin CHIRP traditional sonar and CHIRP ClearVu down imaging, with Quickdraw Contours recording your own one-foot contour maps over up to two million acres.
A fishfinder rather than a chartplotter, it carries no preloaded charts, but the built-in, high-sensitivity GPS marks and returns you to waypoints and shows your boat speed, and custom maps and waypoints can be shared with other compatible units. The rugged IPX7 housing handles open-water and ice fishing. Add a Garmin CHIRP transducer to complete the system.
PRODUCT DETAILS
- 5-inch WVGA colour display with keypad control
- Supplied without a transducer; add a compatible Garmin CHIRP transducer
- Supports Garmin CHIRP traditional and CHIRP ClearVu sonar
- Quickdraw Contours records custom 1 ft contour maps (up to 2 million acres)
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Rugged, waterproof to IPX7
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
| Transducer | Sold without a transducer; supports Garmin CHIRP traditional and CHIRP ClearVu transducers |
Display
| Display size | 5 in. (12.7 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar and Garmin CHIRP ClearVu scanning sonar |
| Traditional frequencies | 77/200 kHz CHIRP |
| ClearVu frequencies | 455/800 kHz |
| Transmit power | 500 W (RMS) |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Mapping | Garmin Quickdraw Contours mapping (store up to 2 million acres with 1 ft contours) |
Physical
| Dimensions (W x H x D) | 18.8 x 11.6 x 5.4 cm (7.4 x 4.6 x 2.1 in.) |
| Weight | 0.5 kg (1.1 lb) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 12 to 20 Vdc; rated current 1.5 A; fuse 3 A, 250 V fast-acting |
