Garmin

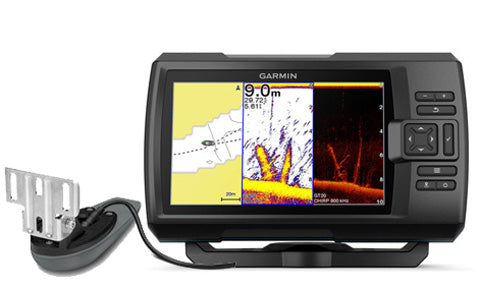

Garmin Striker Plus 7cv GT20-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER Plus 7cv combines Garmin CHIRP traditional sonar with CHIRP ClearVu down imaging on a large, clear 7-inch WVGA display, so fish arches and underwater structure are easy to read. Garmin Quickdraw Contours records your own one-foot contour maps as you fish, storing up to two million acres, and built-in Wi-Fi pairs the unit with the Garmin ActiveCaptain app for smart notifications and access to Quickdraw Community data.
It is a fishfinder rather than a chartplotter, so no charts are preloaded, but the built-in, high-sensitivity GPS marks and returns you to waypoints and shows your boat speed. The supplied GT20-TM transducer ships with transom and trolling-motor mounting hardware and a temperature sensor, and the rugged IPX7 housing handles open-water and ice fishing.
PRODUCT DETAILS
- 7-inch WVGA colour display with keypad control
- Garmin CHIRP traditional sonar plus CHIRP ClearVu down imaging
- Quickdraw Contours records custom 1 ft contour maps (up to 2 million acres)
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Includes GT20-TM transducer with transom and trolling-motor mounts
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
| Wireless connectivity | Built-in Wi-Fi for the Garmin ActiveCaptain app (smart notifications, Quickdraw Community data) |
Display
| Display size | 7 in. (17.8 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar and Garmin CHIRP ClearVu scanning sonar |
| Traditional frequencies | 77/200 kHz CHIRP |
| ClearVu frequencies | 455/800 kHz |
| Transmit power | 500 W (RMS) |
| Maximum depth | 2,300 ft (701 m) freshwater; 1,100 ft (335 m) saltwater |
| Transducer included | Garmin GT20-TM transom-mount transducer (8-pin) with built-in temperature sensor |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Mapping | Garmin Quickdraw Contours mapping (store up to 2 million acres with 1 ft contours) |
Physical
| Dimensions (W x H x D) | 23.5 x 14.0 x 5.8 cm (9.3 x 5.5 x 2.3 in.) |
| Weight | 0.8 kg (1.7 lb) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 12 to 20 Vdc; rated current 1.5 A; fuse 3 A, 250 V fast-acting |
