Garmin

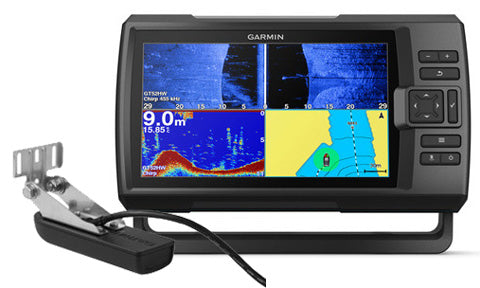

Garmin Striker Plus 9sv GT52HW-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER Plus 9sv is the largest display in the STRIKER Plus range, presenting CHIRP traditional, CHIRP ClearVu and CHIRP SideVu sonar on a generous 9-inch WVGA screen so structure below and beside the boat is easy to read at a glance. Garmin Quickdraw Contours records your own one-foot contour maps as you fish, storing up to two million acres, and built-in Wi-Fi pairs the unit with the Garmin ActiveCaptain app.
As a fishfinder rather than a chartplotter it carries no preloaded charts, but the built-in, high-sensitivity GPS marks and returns you to waypoints and shows your boat speed. The supplied GT52HW-TM transducer carries traditional, ClearVu and SideVu elements with transom and trolling-motor hardware and a temperature sensor, and the rugged IPX7 housing handles open-water and ice fishing.
PRODUCT DETAILS
- 9-inch WVGA colour display with keypad control
- CHIRP traditional, CHIRP ClearVu and CHIRP SideVu scanning sonar
- Quickdraw Contours records custom 1 ft contour maps (up to 2 million acres)
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Includes GT52HW-TM transducer with transom and trolling-motor mounts
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
| Wireless connectivity | Built-in Wi-Fi for the Garmin ActiveCaptain app (smart notifications, Quickdraw Community data) |
Display
| Display size | 9 in. (22.9 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar, Garmin CHIRP ClearVu and Garmin CHIRP SideVu scanning sonar |
| Traditional frequencies | 77/200 kHz CHIRP |
| ClearVu and SideVu frequencies | 455/800 kHz |
| Transmit power | 500 W (RMS) |
| Maximum depth | 2,300 ft (701 m) freshwater; 1,100 ft (335 m) saltwater |
| Transducer included | Garmin GT52HW-TM transom-mount transducer (12-pin) with built-in temperature sensor; includes 4-pin to 12-pin adapter cable |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Mapping | Garmin Quickdraw Contours mapping (store up to 2 million acres with 1 ft contours) |
Physical
| Dimensions (W x H x D) | 28.2 x 16.5 x 6.0 cm (11.1 x 6.5 x 2.4 in.) |
| Weight | 1.1 kg (2.4 lb) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 12 to 20 Vdc; rated current 1.5 A; fuse 3 A, 250 V fast-acting |
