Garmin
MS-RA770, Fusion, Marine Stereo, OEM
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

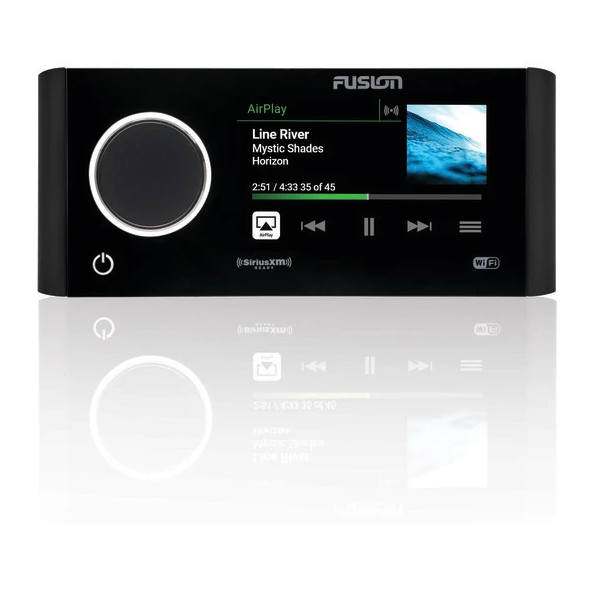

This is the OEM-packaged version of the Fusion Apollo MS-RA770, the world's first touchscreen marine stereo with Apple AirPlay 2 and built-in Wi-Fi. A one-piece optically bonded glass display, Fusion Digital Signal Processing and over-the-air software updates make it simple to tailor superior sound in any area of the boat.
PartyBus networking links multiple Apollo stereos and remotes to share or independently control audio across up to four zones. Sources include Bluetooth, USB, AM/FM, optical audio and DAB+ (module required), while NMEA 2000 connectivity allows control from a compatible multifunction display.
PRODUCT DETAILS
- OEM-packaged Apollo MS-RA770 flagship marine stereo
- Touchscreen with Apple AirPlay 2 and built-in Wi-Fi streaming
- One-piece optically bonded glass 4.3 in colour display
- PartyBus networking controls audio across up to four zones
- Built-in DSP and NMEA 2000 connectivity for MFD control
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Audio
| Built-in amplifier power | 26 W RMS x 4 (4 Ohm), 43 W RMS x 4 (2 Ohm) |
| Peak power | 280 W |
| Zones | 4 |
| DSP | Built-in Fusion Digital Signal Processing |
| Pre-amp / RCA outputs | 4-zone RCA pre-outs plus subwoofer output |
Sources
| Bluetooth | Yes |
| USB | Yes |
| AM/FM tuner | Yes |
| DAB+ | Optional (DAB+ module required) |
| AUX | Yes |
| Apple / Android | Apple AirPlay 2, iAP2 and Android AOA |
| Wi-Fi / app | Built-in Wi-Fi, Fusion-Link app |
Display
| Display type / size | 4.3 in optically bonded colour touchscreen LCD |
Connectivity
| NMEA 2000 | Yes |
| Ethernet (PartyBus) | Yes |
| Wired remote support | Yes (Apollo ERX400 / NRX remotes) |
Installation
| Mounting | Flush / surface mount |
| Dimensions (H x W x D) | 82 x 192 x 119.4 mm |
| Marine rating | IPX6 and IPX7 front panel |
General
| Power supply | 10.8 to 16 V DC |
| Warranty | 2 years |
