Reactor™ 40 Hydraulic Corepack with SmartPump v2 With GHC™ 50 Autopilot Instrument
£3,869.99
/
Tax included.
Shipping calculated at checkout.
010-02794-01
Reactor 40 Hydraulic autopilot built around the SmartPump v2 integrated brushless pump, supplied with the GHC 50 touchscreen instrument. A complete hydraulic autopilot with Shadow Drive valve and full NMEA 2000 navigation.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Reactor 40 Hydraulic autopilot with SmartPump v2 and GHC 50 is a complete GPS-stabilised steering system for boats with hydraulic helms. The Reactor 40 CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route accurately. The included SmartPump v2 combines a brushless electro-hydraulic pump and its control unit in one compact, quiet unit, with Intelligent Rudder Rate Technology that automatically matches steering speed to boat speed. It suits hydraulic cylinders from 4 to 24 cu in with a configurable flow up to 2.4 L per minute, and its built-in Shadow Drive valve lets you take the wheel at any time. Control is through the supplied GHC 50, a 5 in colour touchscreen instrument with NMEA 2000, Wi-Fi and ANT+ connectivity. Dockside and Sea Trial wizards tune performance to your boat.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for hydraulic steering
- Includes the Garmin SmartPump v2 integrated brushless pump and control unit
- GHC 50 instrument with a 5 in colour touchscreen supplied for helm control
- Intelligent Rudder Rate Technology adjusts steering response to boat speed
- Built-in Shadow Drive valve for instant manual takeover
- Suits hydraulic cylinders from 4 to 24 cu in with up to 2.4 L/min flow
- NMEA 2000, Wi-Fi and ANT+ connectivity with wireless remote support

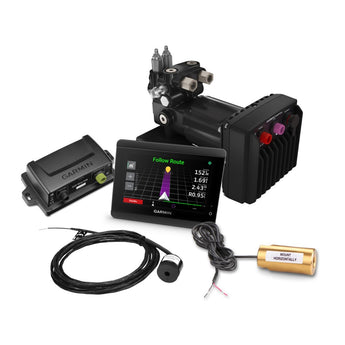

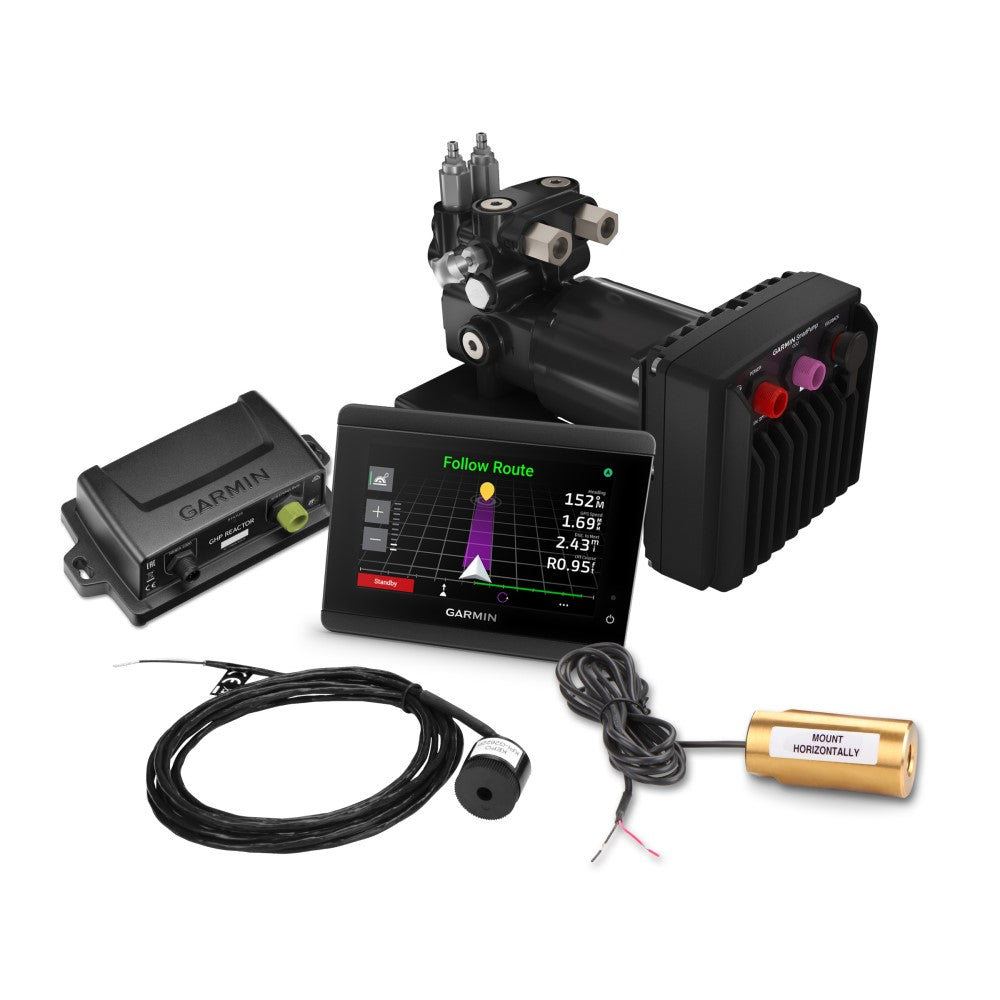

- Reactor 40 CCU (course computer unit)
- Garmin SmartPump v2 (integrated pump and control unit, with Shadow Drive valve)
- GHC 50 autopilot instrument
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Hydraulic via Garmin SmartPump v2 (integrated brushless pump and control unit, included) |
| Helm control | GHC 50 autopilot instrument (included) |
| Manual override | Shadow Drive valve (in the SmartPump) suspends autopilot when the helm is turned manually |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 5 m (16 ft.) |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Pump | Garmin SmartPump v2, integrated brushless electro-hydraulic pump with built-in control unit |
| Compatible cylinder volume | 4 to 24 cu in (approx. 65 to 393 cc) |
| Pump flow rate | Configurable, 0 to 2.4 L per minute |
| Rudder rate technology | Intelligent Rudder Rate Technology (IRRT) adjusts steering speed with boat speed |
Controller
| Display | GHC 50: 5 in (12.7 cm) sunlight-readable colour touchscreen, 800 x 480 WVGA |
| Connectivity | NMEA 2000, Wi-Fi and ANT+ (wireless remote support) |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
Electrical
| Pump supply voltage | 10 to 30 Vdc (12 to 24 Vdc nominal), 40 A fuse |
Physical
| Included alarm | Audible alarm 23 x 25 mm, 68 g, 3 m cable |
General
| Compatible steering | Hydraulic steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via the GHC 50 or a compatible Garmin chartplotter |
No videos available for this product.
What is the SmartPump v2?
It is an integrated hydraulic drive that combines a brushless pump and its control unit in one unit, with a built-in Shadow Drive valve. It replaces the separate pump and ECU used by other Reactor 40 hydraulic systems.
What size steering cylinder does it suit?
The SmartPump v2 suits hydraulic steering cylinders from 4 to 24 cu in, with a configurable flow rate up to 2.4 L per minute.
What is the GHC 50?
The GHC 50 is Garmin marine autopilot instrument, with a 5 in sunlight-readable colour touchscreen and NMEA 2000, Wi-Fi and ANT+ connectivity for wired and wireless control.
What power supply is required?
The SmartPump connects to a 10 to 30 Vdc supply (12 to 24 Vdc nominal) through a 40 A fuse, and the NMEA 2000 network is powered from a 9 to 16 Vdc source.
