Garmin Class B Compact v2 Drive Unit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

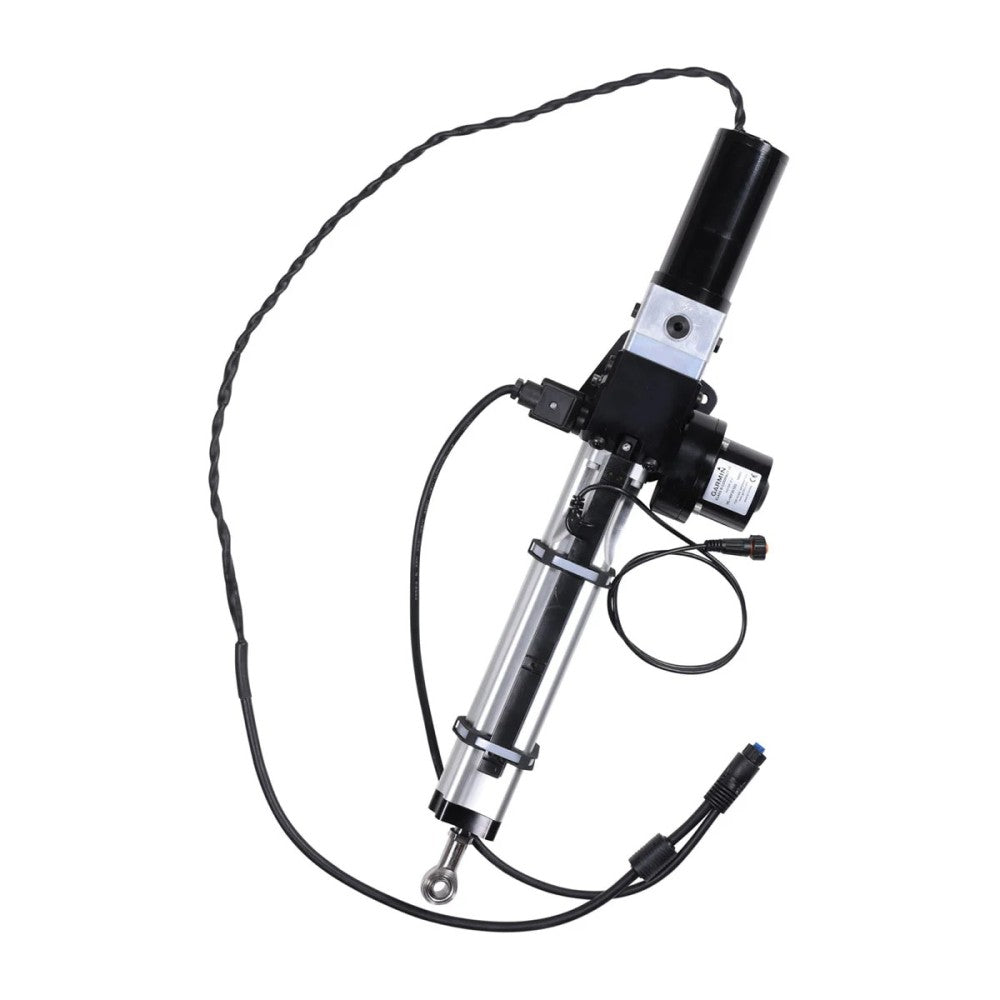

The Garmin Class B Compact Drive Unit (v2) is a compact, self-contained linear drive for sailing vessels using a Garmin autopilot. It bolts to a quadrant or tiller arm and extends and retracts to steer the rudder, with an integrated position feedback sensor that removes the need for a separate rudder feedback unit on many installations.
Sealed to IP67 and regulated by the autopilot at 12 Vdc, it provides up to 6,900 N of intermittent thrust within a 254 mm stroke. The drive must be installed under deck and limited by physical rudder end stops, and it can be removed from its base for service when required.
PRODUCT DETAILS
- Compact self-contained linear drive with built-in feedback
- Up to 6,900 N intermittent thrust within a 254 mm stroke
- IP67 sealed for dependable below-deck operation
- Integrated position feedback sensor on the drive unit
- 12 Vdc operation regulated by the Garmin autopilot
- Removable from its base for straightforward servicing
- Works with compatible Garmin GHP and Reactor autopilots
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Drive type | Compact self-contained linear drive unit |
| Steering type | Mechanical or cable steering (sailboats) |
| Compatible autopilots | Garmin GHP and Reactor autopilot systems |
Drive
| Clutch | Solenoid clutch coil, 12 W |
| Stroke | 254 mm (10 in.) fully retracted to fully extended |
| Maximum operating thrust (intermittent) | 6,900 N (1,551 lbf) |
| Rudder feedback | Integrated position feedback sensor on the drive unit |
| Tiller arm compatibility | Quadrant or tiller arm 12 to 16 mm (0.47 to 0.63 in.) thick |
Electrical
| Input voltage | 12 Vdc (regulated by the autopilot) |
| Current at 100 percent duty (continuous) | 12.5 A |
| Peak current at maximum load | 25 A (intermittent duty) |
Physical
| Weight | 9 kg (19.84 lb.) |
| Water-ingress protection | IP67 |
| Operating temperature (limits) | -15 to 50 C (5 to 122 F) |
