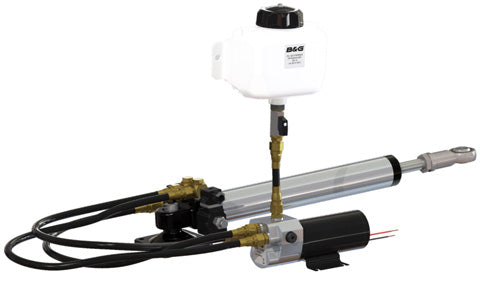

B&G, Simrad Hydraulic Ram T3 24v Up to 36,000kg Displacement
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
B&G, Simrad T3 24V Hydraulic RAM. High power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure. T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder. Max Boat Size 36000 kg. Compatible Computers H5000, NAC-3
PRODUCT DETAILS
- T3 24V hydraulic ram - high power, efficient drive unit for maximum power with minimum consumption
- Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure
- Separate hydraulic pump allows greater mounting flexibility for this larger cylinder
- Max Boat Size 36,000 kg
- Compatible Computers: H5000, NAC-3
No exploded diagram available for this product.
No compatible transducers listed for this product.
Technical Data
| Voltage | 12 or 24 VDC |
| Typical Amp-hour (60 kg at 25% duty) | 12V 2.7 Amps / 24V 1.4 Amps |
| Typical Current Intermittent (350 kg) | 12V 34.0 Amps / 24V 15.5 Amps |
| Hard-over time (Nominal) | 13 seconds |
| Ingress protection | IP67 |
| EMC Protection | BS EN 60945:2002 |
| Ignition Protection | BS EN 28846:1993 |
| Ambient operating Temperature | -15 to + 55 deg C |
| Max Operating Thrust | 1080 kg (Intermittent) |
| Clutch coil | 12/24V 12 watt |
| Clutch connection | DIN 43650 (4-9 mm cable) |
| Fluid | ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV (e.g. Fuchs Renolin B 15 HV1, Seastar HA5430) |
| Weight | 14 kg |
