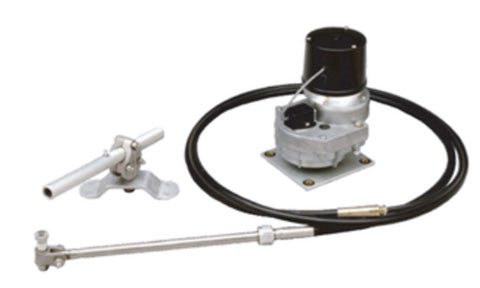

B&G, Simrad SD10 Mechanical Drive Unit Up to 7,000kg Displacement
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
SD10 Mechanical Drive unit for NAC-2 Autopilot computers. The Dive will suit sailboats 25’-37’ with 6’ steering cable with electromagnetic clutch with override function, built in Rudder feedback and 12 V power supply. Compatible Computers NAC-2
PRODUCT DETAILS
- SD10 mechanical drive unit for NAC-2 autopilot computers
- Suits sailboats 25'-37' (up to 11.5 m / 38 ft, up to 7,000 kg fully laden)
- 6' steering cable with electromagnetic clutch and override function
- Built-in rudder feedback
- 12 V DC power supply
- Compatible Computers: NAC-2
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Specifications
| Maximum Stroke | 305mm / 12in |
| Peak Thrust | 180kg / 400lbs |
| Max Rudder Torque | 450nm / 333 lbft |
| Hard Over Time | 12-15 seconds |
| Peak Power | 7 Amps |
| Average Power | 2.5 Amps |
| Tiller Arm Radius | 254mm / 10in |
| Max Displacement (Fully Laden) | 7000kg / 15,400lbs |
| Max Boat Length | 11.5m / 38ft |
| Voltage | 12v DC |
| Clutch Circuit Power | 850mA |
