Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 50 Instrument Pack With GHC™ 50 Autopilot Instrument
£1,799.99
/
Tax included.
Shipping calculated at checkout.
010-02794-07

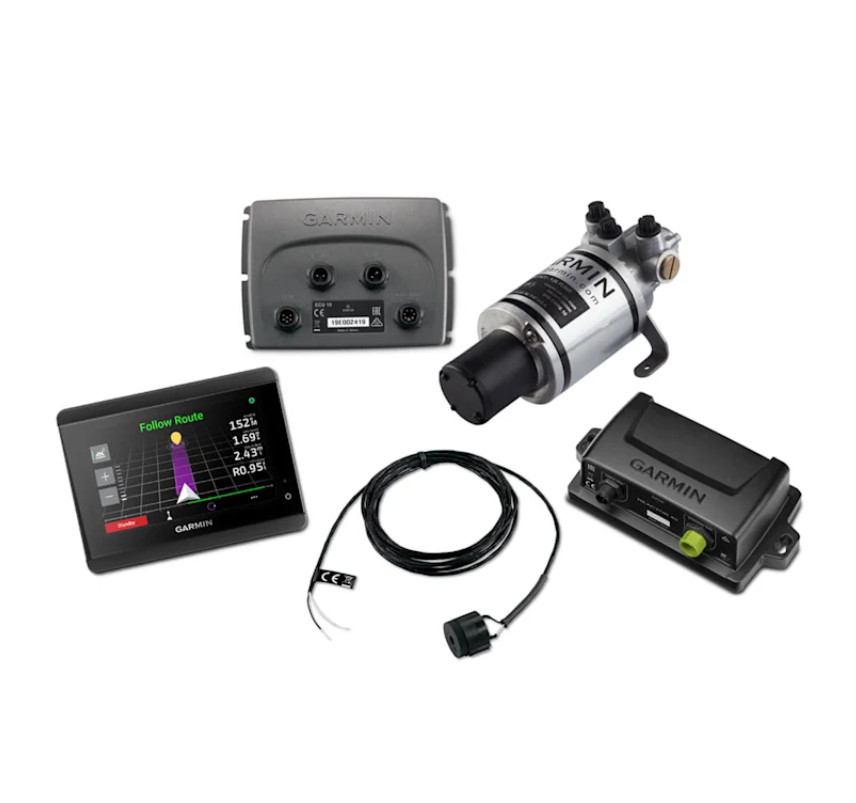

Compact Reactor 40 Hydraulic autopilot pack with the GHC 50 touchscreen instrument and a compact drive pump. A complete GPS-stabilised autopilot for boats with hydraulic steering.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Compact Reactor 40 Hydraulic autopilot with GHC 50 brings precise, GPS-stabilised steering to boats with hydraulic helms. The Reactor 40 CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route with minimal wandering. This pack includes a compact electro-hydraulic pump that drives the steering cylinder, an electronic control unit and an audible alarm. Control is through the supplied GHC 50, a 5 in sunlight-readable colour touchscreen instrument with NMEA 2000, Wi-Fi and ANT+ connectivity. NMEA 2000 connectivity links the system to compatible Garmin chartplotters for waypoint and route navigation, and Dockside and Sea Trial wizards tune performance to your boat. A Shadow Drive sensor for automatic manual takeover can be added separately if required.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for hydraulically steered boats
- Includes a compact electro-hydraulic drive pump
- GHC 50 instrument with a 5 in colour touchscreen supplied for helm control
- Solid-state CCU heading sensor with built-in attitude and rate-of-turn
- NMEA 2000, Wi-Fi and ANT+ connectivity with wireless remote support
- Dockside and Sea Trial wizards tune the system to your boat
- Reactor 40 CCU (course computer unit)
- Electronic control unit (ECU)
- Compact hydraulic drive pump
- GHC 50 autopilot instrument
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Hydraulic (compact electro-hydraulic pump, included) |
| Helm control | GHC 50 autopilot instrument (included) |
| Manual override | Manual override via an autopilot disable switch (Shadow Drive sensor not included in this pack) |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Pump type | Compact electro-hydraulic pump (included) |
| Pump dimensions (H x W x D) | 84.6 x 100.3 x 155.3 mm (3.3 x 4.0 x 6.1 in.) |
| Pump weight | 2.2 kg (5 lb.) |
| Pump hydraulic ports | Three 1/4 in. NPT ports |
| Pump peak current | Peak 34 A; engaged 5 to 10 A; standby under 1 A (from ECU) |
| ECU dimensions (W x H x D) | 168 x 117 x 51 mm (6.6 x 4.6 x 2 in.) |
| ECU weight | 680 g (24 oz.) |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
Electrical
| ECU/pump supply voltage | 12 to 24 Vdc (ECU input 11.5 to 30 Vdc) |
| ECU fuse | 40 A, blade-type |
General
| Compatible steering | Hydraulic steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via the GHC 50 or a compatible Garmin chartplotter |
Controller
| Display | GHC 50: 5 in (12.7 cm) sunlight-readable colour touchscreen, 800 x 480 WVGA |
| Connectivity | NMEA 2000, Wi-Fi and ANT+ (wireless remote support) |
No videos available for this product.
What type of steering does this autopilot suit?
It is designed for boats with hydraulic steering. The included compact pump connects into the hydraulic steering lines to move the steering cylinder.
What is the GHC 50?
The GHC 50 is Garmin marine autopilot instrument, with a 5 in sunlight-readable colour touchscreen and NMEA 2000, Wi-Fi and ANT+ connectivity for wired and wireless control.
What power supply is required?
The ECU and pump connect to a 12 to 24 Vdc supply through the supplied 40 A fuse, and the NMEA 2000 network is powered from a 9 to 16 Vdc source.
Is a Shadow Drive sensor included?
No. This pack does not include the Shadow Drive sensor; an autopilot disable switch is used for manual override, or the Shadow Drive sensor can be added separately.
