Reactor™ 40 Kicker Autopilot
£2,350.00
/
Tax included.
Shipping calculated at checkout.
010-00705-95
Reactor 40 Kicker autopilot that steers a small kicker or trolling outboard using a tilt-tube steering actuator and a throttle actuator. Supplied without a control head and operated from a compatible Garmin chartplotter.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Reactor 40 Kicker autopilot brings GPS-stabilised steering to boats powered by a small kicker or trolling outboard. The Reactor 40 CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route accurately. Instead of a hydraulic pump, this system uses a steering actuator that fits into the motor tilt tube to steer the outboard, plus a throttle actuator that controls the motor speed, so the autopilot can hold a heading hands-free. The steering actuator must be installed in a stainless steel tilt tube for reliable long-term operation. This corepack is supplied without a dedicated instrument: the CCU connects to a NMEA 2000 network and is controlled from a compatible Garmin chartplotter, which also feeds it waypoint and route data. Dockside and Sea Trial wizards tune the system to your boat.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for kicker and trolling outboards
- Steering actuator mounts in the motor tilt tube to steer the kicker
- Throttle actuator controls the motor speed for hands-off course holding
- Solid-state CCU heading sensor with built-in attitude and rate-of-turn
- Controlled by a compatible Garmin chartplotter (no separate instrument needed)
- NMEA 2000 connectivity for chartplotter route and waypoint following

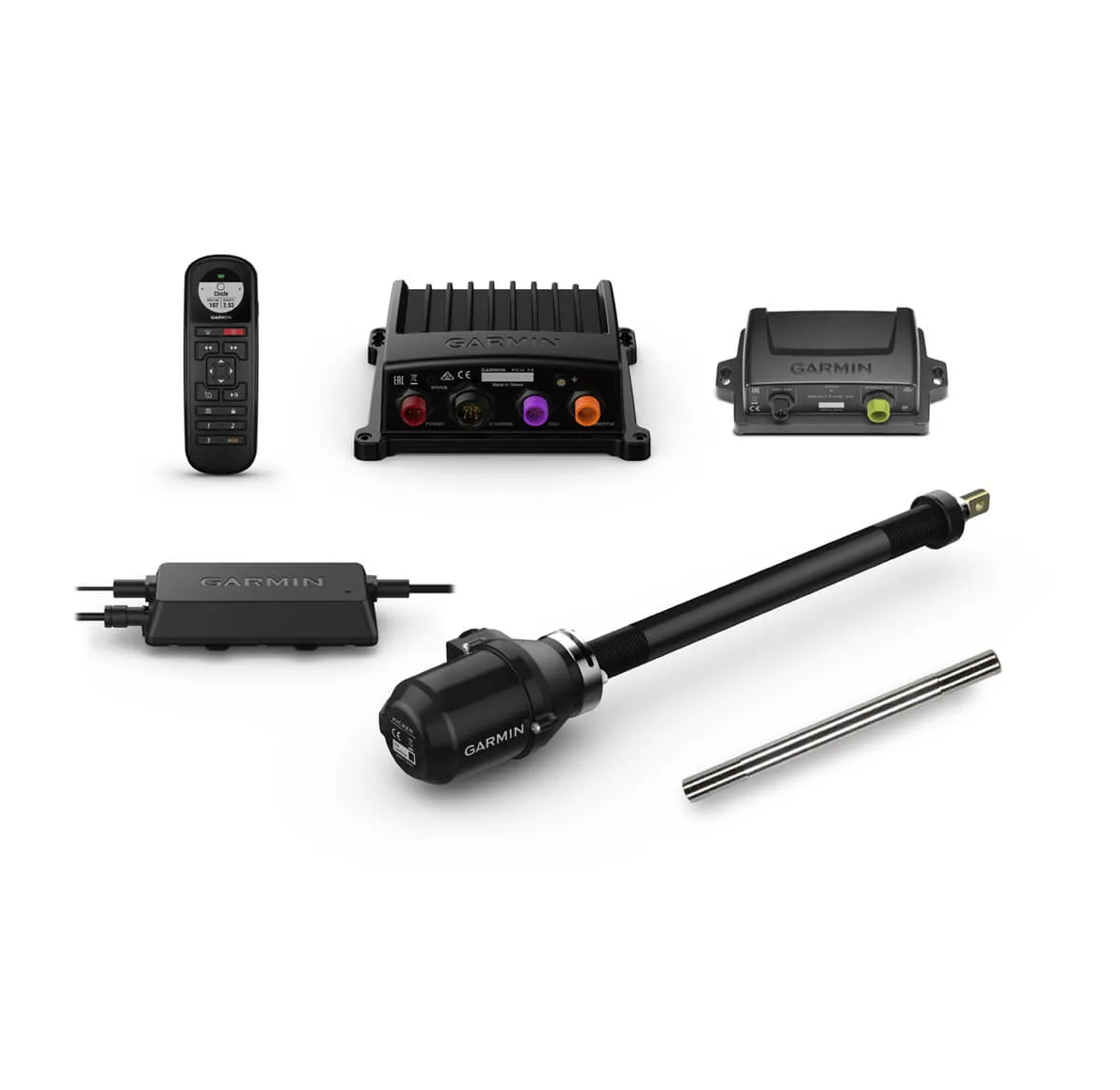

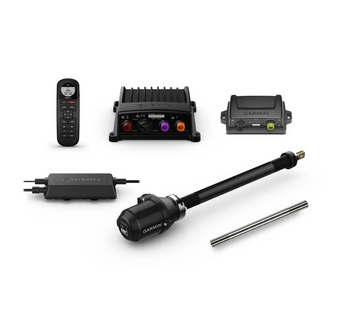

- Reactor 40 CCU (course computer unit)
- Electronic control unit (ECU)
- Steering actuator with motor brackets and linkage hardware
- Throttle actuator
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Kicker; steers a small kicker or trolling outboard with a steering actuator and throttle actuator |
| Helm control | No dedicated instrument supplied; control via a compatible Garmin chartplotter on the same NMEA 2000 network |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 575 g (20 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 5 m (16 ft.) |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Control unit | Electronic control unit (ECU), included |
| ECU dimensions (W x H x D) | 175 x 142 x 64.5 mm (6.9 x 5.6 x 2.5 in.) |
| ECU weight | 680 g (24 oz.) |
| Steering actuator | 415 x 90 x 63 mm (16.3 x 3.5 x 2.5 in.), 1 kg (2.16 lb.); mounts in the motor tilt tube |
| Tilt tube requirement | Steering actuator must be installed in a stainless steel tilt tube |
| Throttle actuator | Throttle actuator (included) controls motor speed; mounts inside the motor housing |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
Electrical
| ECU supply voltage | 12 to 24 Vdc (ECU input 11.5 to 30 Vdc) |
| ECU fuse | 40 A, blade-type |
Physical
| Included alarm | Audible alarm via the CCU cable (helm-station mounted) |
General
| Compatible motor | Small kicker / trolling outboards (for example Honda, Mercury, Yamaha with the correct bracket) |
No videos available for this product.
What type of motor is this autopilot for?
It is designed to steer a small kicker or trolling outboard. A steering actuator fits in the motor tilt tube and a throttle actuator controls the motor speed.
Do I need a stainless steel tilt tube?
Yes. The steering actuator must be installed in a stainless steel tilt tube. Many motors, including some Honda and Yamaha models, use non-stainless tubes that must be replaced first to prevent the actuator seizing.
Does it include a control head?
No. This corepack is controlled from a compatible Garmin chartplotter on the same NMEA 2000 network. A GHC instrument can be added if you prefer dedicated controls.
What power supply is required?
The ECU connects to a 12 to 24 Vdc supply through the supplied 40 A fuse, and the NMEA 2000 network is powered from a 9 to 16 Vdc source.
