EGIS 250A MaxiBus Busbar, Two Stud, 14 Screw
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

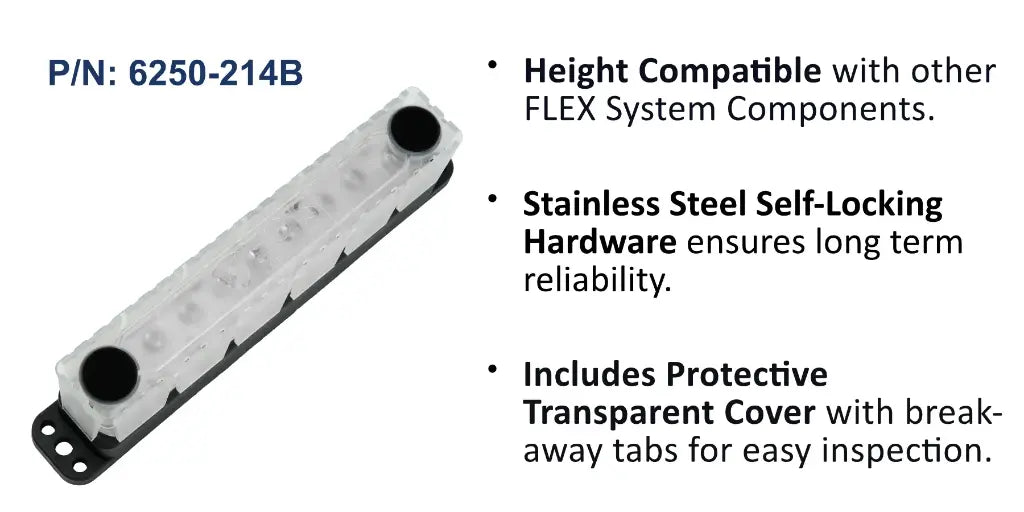

The EGIS 250A MaxiBus in its fourteen-screw form feeds fourteen screw terminals from two M8 (5/16 inch) studs at up to 80Vdc, suiting heavy-duty distribution with a high branch-circuit count. The insert-molded busbar and studs maximise mechanical strength and the tin-plated copper conductor keeps voltage drop low under load.
A clear polycarbonate cover allows inspection of torque markings without removal and provides break-away tabs for cable access. The busbar is FLEX system height compatible, accepts #10 (M5) or 1/4 inch (M6) mounting screws, and uses stainless steel self-locking hardware rated from -40C to 125C.
PRODUCT DETAILS
- 250A rated, 80Vdc maximum
- Two M8 (5/16 inch) studs plus fourteen screw terminals
- Insert-molded busbar and studs for strength
- Tin-plated copper for minimal voltage drop
- Clear polycarbonate cover with break-away tabs
- FLEX system height compatible
- Stainless steel self-locking hardware
- 250A MaxiBus busbar
- Clear polycarbonate cover
- Stainless steel terminal hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 250A |
| Maximum Voltage | 80Vdc |
Mechanical
| Studs | 2 x M8 (5/16 inch) |
| Screw Terminals | 14 |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | 4 x #10 (M5) and 2 x 1/4 inch (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
| Cover Material | Clear polycarbonate |
Environmental
| Operating Temperature | -40C to 125C |
General
| FLEX System Compatible | Yes |
