EGIS 250A MaxiBus Busbar, Two Stud, 8 Screw
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

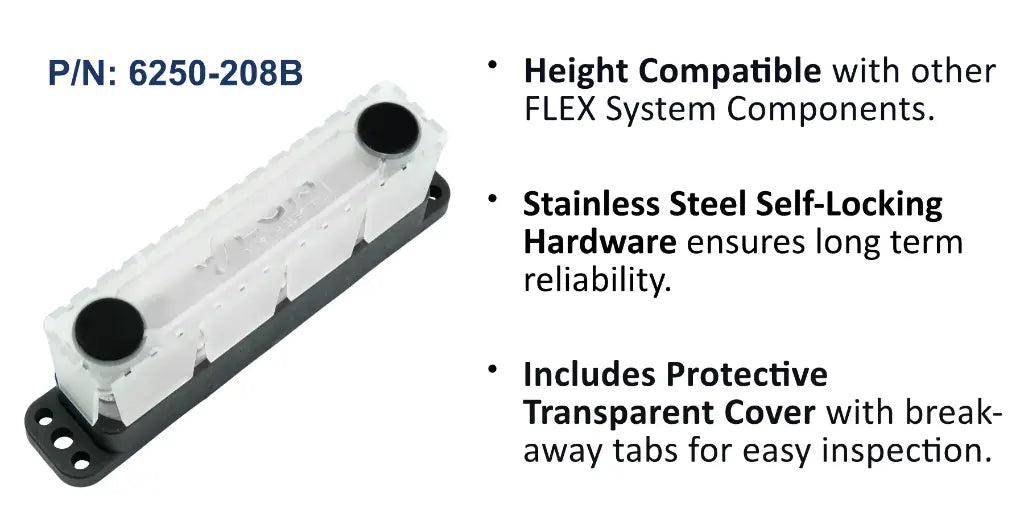

The EGIS 250A MaxiBus is a heavy-duty busbar that distributes power from two M8 (5/16 inch) studs to eight screw terminals at up to 80Vdc. Its insert-molded busbar and studs maximise strength and durability, while the tin-plated copper conductor keeps voltage drop low under high current. The design is FLEX system height compatible for easy connection to other EGIS FLEX components.
A clear polycarbonate cover allows inspection of torque markings without removal and provides break-away tabs for cable and terminal access. Flexible mounting accepts #10 (M5) or 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability across the operating range of -40C to 125C.
PRODUCT DETAILS
- 250A rated, 80Vdc maximum
- Two M8 (5/16 inch) studs plus eight screw terminals
- Insert-molded busbar and studs for strength
- Tin-plated copper for minimal voltage drop
- Clear polycarbonate cover with break-away tabs
- FLEX system height compatible
- Stainless steel self-locking hardware
- 250A MaxiBus busbar
- Clear polycarbonate cover
- Stainless steel terminal hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 250A |
| Maximum Voltage | 80Vdc |
Mechanical
| Studs | 2 x M8 (5/16 inch) |
| Screw Terminals | 8 |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | 4 x #10 (M5) and 2 x 1/4 inch (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
| Cover Material | Clear polycarbonate |
Environmental
| Operating Temperature | -40C to 125C |
General
| FLEX System Compatible | Yes |
