EGIS Compact ANL Fuse Block, 35-300A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

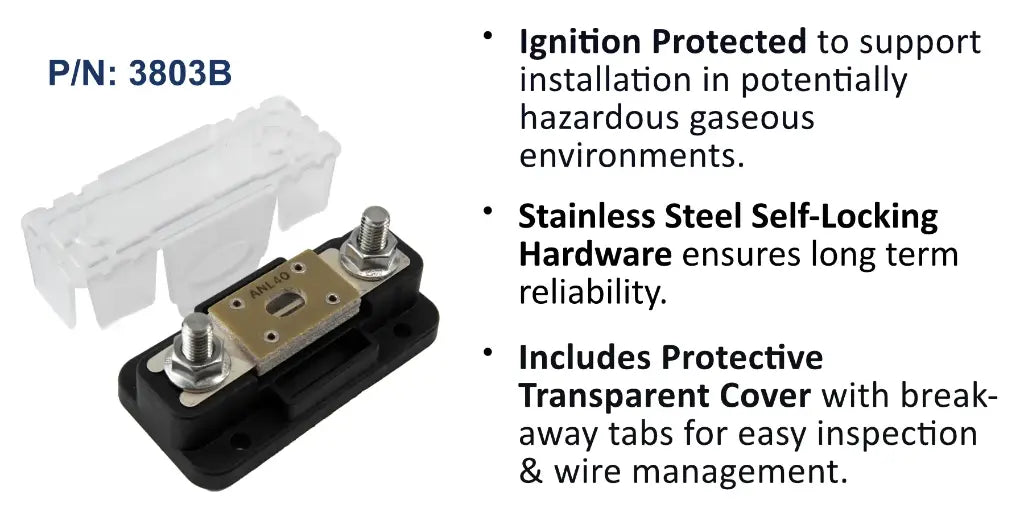

The EGIS Compact ANL Fuse Block is an open, single-circuit fuse block that protects a heavy-gauge feed using ANL fuses from 35 to 300 amps, with separate stud connections sized for cables up to 2/0 (approximately 65mm2). Landing cables and terminals on dedicated input and output studs rather than the fuse tab keeps connections clean and reliable, while its compact footprint suits installations where space is limited. The block is ignition protected, supporting use in potentially hazardous gaseous environments such as LPG or gas boats.
Built around a tin-plated copper busbar for low voltage drop and finished with stainless steel self-locking hardware, the block is designed for long service in demanding marine and mobile applications. The glass-filled nylon construction withstands harsh conditions, and the design is compatible with the EGIS FLEX system for busbar interconnection with other components. Designed and made in the U.S.A.
PRODUCT DETAILS
- Open single-circuit ANL fuse block rated 35 to 300A
- Accepts cables up to 2/0 (about 65mm2)
- Compact footprint for space-limited installations
- Ignition protected for gaseous environments
- Separate input and output studs for heavy-gauge cable mounting
- Tin-plated copper busbar with stainless steel self-locking hardware
- Compact open ANL fuse block
- Stainless steel self-locking hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Amp Rating | 35-300A |
| Fuse Type | ANL |
Mechanical
| Maximum Cable Size | 2/0 (about 65mm2) |
| Circuits | 1 |
| Construction | Open (no cover) |
| Busbar Material | Tin-plated copper |
| Ignition Protected | Yes |
