EGIS Programmable ACR Automatic Charging Relay 160A 12V (Bulk Pack)

£188.72
Tax included. Shipping calculated at checkout.
7610B
Programmable 160A automatic charging relay for 12V systems. Combines two battery banks while charging and isolates them when no charge source is present, with an ultra-low 1.3mA off-state draw and sealed, ignition-protected construction. Bulk packed.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS 7610 is a TH3-Series automatic charging relay (ACR) rated at 160A continuous for 12V electrical systems. It automatically combines a start and auxiliary battery when a charge source is present, then isolates them once charging stops, so the engine-start battery is always protected from being drained by house loads. Two independent start or engine-isolation inputs allow charge sources to be isolated when multiple engines or charge systems are active.

An ultra-low off-state current draw of 1.3mA (versus 7-10mA on typical ACRs) means it will not deplete batteries during extended downtime. A sealed enclosure, stainless-steel self-locking hardware and high-temperature materials allow mounting almost anywhere, while integrated thermal-overload protection and an optional shorted-cell lock-out guard the system against cascading faults. Voltage thresholds are set via top-side dip switches, and LED diagnostics report relay, voltage and start-isolation status. The unit ships with a Deutsch/Amphenol DT connector harness and also accepts Molex MX-150 and direct wire-lead connections. This is the bulk-packed version supplied without retail packaging.

PRODUCT DETAILS

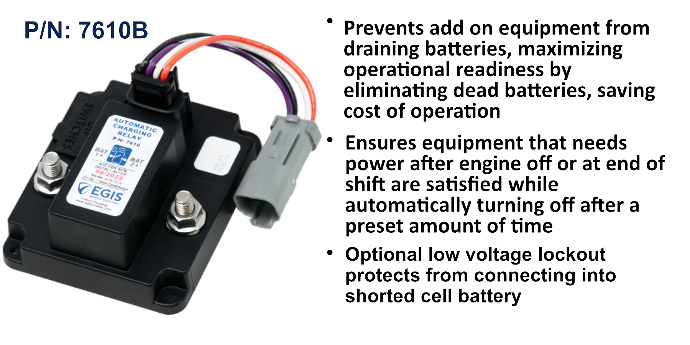

  • 160A continuous current rating for 12V systems
  • Automatic combine and isolate to protect the start battery
  • Ultra-low 1.3mA off-state current draw
  • Programmable voltage thresholds via top-side dip switches
  • LED diagnostics for relay, voltage and start-isolation status
  • Sealed construction with stainless-steel self-locking hardware
  • Integrated thermal-overload protection and optional shorted-cell lock-out
  • Supplied with Deutsch DT connector harness (MX-150 and wire-lead options)
  • 1 x EGIS 7610 automatic charging relay (bulk packed)
  • Deutsch/Amphenol DT connector harness

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current160 A
Voltage Range8-18 V DC
Interrupt Current240 A
Off-State Current Draw1.3 mA
ACR Closing Voltage12.9-13.6 V DC
ACR Opening Voltage12.1-12.8 V DC

Mechanical

ConnectorMolex MX-150 integral; Deutsch DT/AT harness; wire leads

No videos available for this product.

What voltage system is the 7610 designed for?
The 7610 is built for 12V electrical systems, with an operating voltage range of 8-18 V DC. A separate 24V version (7610-24) is available for 24V systems.
How does it protect the start battery?
It automatically combines the start and auxiliary batteries when a charge source is present and isolates them when charging stops, so house loads cannot drain the engine-start battery. ACR closing voltage is 12.9-13.6 V DC and opening voltage is 12.1-12.8 V DC.
What is the off-state current draw?
Just 1.3 mA, compared with 7-10 mA on typical ACRs, so it will not deplete batteries even after extended downtime.
How is the relay wired?
It ships with a Deutsch/Amphenol DT connector harness and offers three connection options: the integral Molex MX-150 connector, the DT/AT harness, or direct wire leads.
