EGIS Programmable Triple-Battery ACR 160A 24V

£216.22
Tax included. Shipping calculated at checkout.
7612-24
Programmable triple-battery automatic charging relay for 24V systems, rated 160A total (2x80A). Two independent charge relays share charging across three battery banks and isolate them when no charge source is present, with an ultra-low 1.3mA off-state draw.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

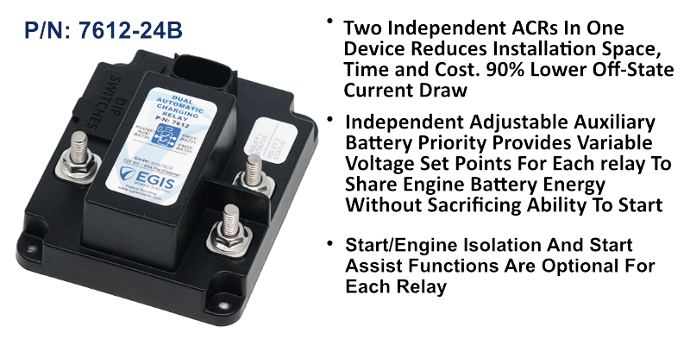

The EGIS 7612-24 is a TH3-Series dual automatic charging relay (ACR) for 24V electrical systems, rated 160A total or 80A per circuit (240A / 120A intermittent). It uses two independent charge relays with a single ultra-low-power monitoring system to share charging across three battery banks and isolate them when no charge source is present, preventing dead start batteries while reducing off-state quiescent current by up to 90% in three-bank systems.

An ultra-low off-state current draw of 1.3mA (versus 7-10mA on typical ACRs) means it will not deplete batteries during extended downtime. A fully sealed enclosure with integrated connector solves control-wire corrosion and vibration issues and enables plug-and-play assembly, while stainless-steel self-locking hardware and high-temperature materials allow mounting almost anywhere. An optional under-voltage lock-out prevents combining with a battery that has a shorted cell, and start/engine isolation and start-assist functions are individually selectable per relay. Voltage thresholds are set via top-side dip switches, LED diagnostics report status, and the unit ships with a Deutsch/Amphenol DT connector harness with Molex MX-150 and wire-lead options.

PRODUCT DETAILS

  • 160A total current rating (2x80A per circuit) for 24V systems
  • Triple-battery management with two independent charge relays
  • Reduces off-state quiescent current by up to 90% in three-bank systems
  • Ultra-low 1.3mA off-state current draw
  • Optional under-voltage lock-out and per-relay start isolation/assist
  • Programmable voltage thresholds via top-side dip switches with LED diagnostics
  • Fully sealed construction with stainless-steel self-locking hardware
  • Supplied with Deutsch DT connector harness (MX-150 and wire-lead options)
  • 1 x EGIS 7612-24 triple-battery automatic charging relay
  • Deutsch/Amphenol DT connector harness

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current160 A total / 80 A per circuit
Voltage Range16-36 V DC
Interrupt Current240 A total / 120 A per relay
Off-State Current Draw1.3 mA
ACR Closing Voltage25.5-26.7 V DC
ACR Opening Voltage24.4-25.5 V DC

Mechanical

ConnectorMolex MX-150 integral; Deutsch DT/AT harness; wire leads

No videos available for this product.

How many batteries can the 7612-24 manage?
It manages up to three battery banks using two independent charge relays and a single ultra-low-power monitor, sharing charging across the banks and isolating them when no charge source is present.
What is the current rating?
160A total, or 80A per circuit, with intermittent ratings of 240A total and 120A per relay. This 24V version operates over a 16-36 V DC range.
What is the off-state current draw?
Just 1.3 mA, which reduces off-state quiescent current by up to 90% in three-battery systems compared with typical ACRs.
How is it wired and protected?
It ships with a Deutsch/Amphenol DT connector harness and also accepts Molex MX-150 and wire-lead connections. An optional under-voltage lock-out prevents combining with a battery that has a shorted cell.
