EGIS 500A Sealed Contactor 12/24V (Bulk Pack)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

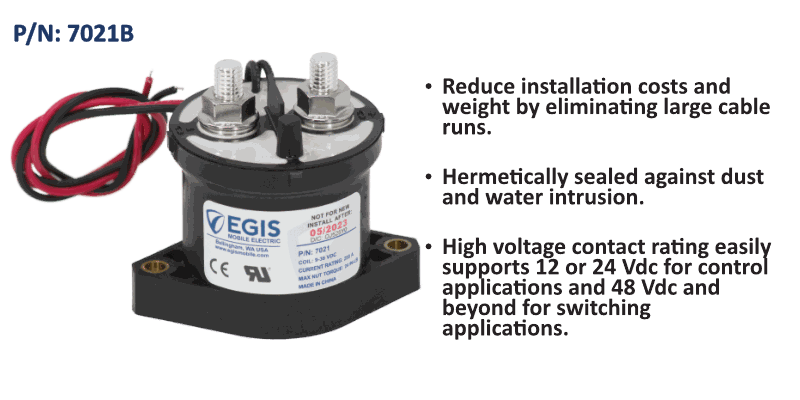

The EGIS 500A sealed contactor remotely switches high-current engine and auxiliary circuits, eliminating long cable runs to manual switches and reducing both installation cost and weight. The hermetically sealed housing keeps dust and moisture out, and high-temperature materials with stainless steel self-locking hardware suit installation almost anywhere on a vehicle or vessel, including engine compartments.
It carries 500A continuously and supports a 9 to 36 Vdc control voltage, while the contacts handle switching voltages up to 48V and beyond. High interrupt capability allows the contactor to safely open in a locked-starter situation of up to 1,500A at 14 Vdc, and it is ignition protected to ISO-8846 and UL 1500 for safe use in closed compartments where explosive gases may be present.
PRODUCT DETAILS
- Hermetically sealed against dust and moisture intrusion
- 500A continuous current rating
- 9 to 36 Vdc control voltage, switching to 48V and beyond
- High interrupt capability up to 1,500A at 14 Vdc
- Ignition protected to ISO-8846 / UL 1500
- 18-8 stainless steel self-locking hardware
- IP67 / IP69K ingress protection
- 500A sealed contactor
- Stainless steel mounting hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Operating Control Voltage | 9-36 V DC |
| Max Interrupt Current | 1,500 A at 14 Vdc |
| Electrical Endurance | 6,000 cycles at 250A / 450V; 100,000 cycles at 250A / 14V |
Mechanical
| Ingress Protection | IP67 / IP69K |
| Ignition Protection | ISO-8846 / UL 1500 |
| Min Operating Temperature | -40 C |
| Max Operating Temperature | 85 C |
| Hardware | 18-8 stainless steel self-locking |
