EGIS CT Series 12-Way Fuse Block with LED Indication
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

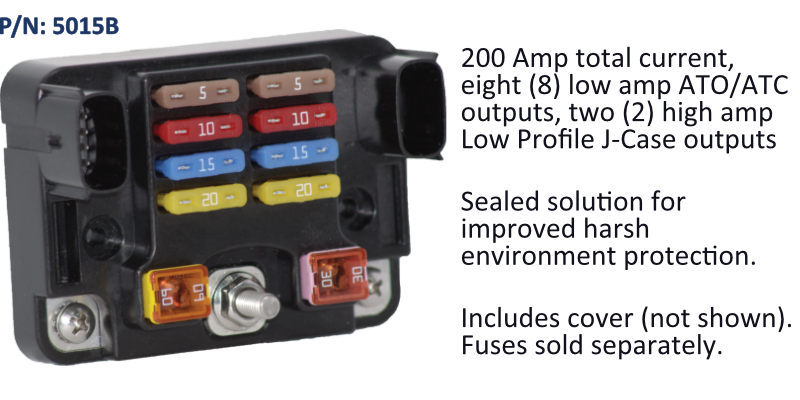

The EGIS CT Series Fuse Block combines low-amp and high-amp circuit protection in one compact product, reducing both installation space and total installed time and cost. Eight low-amp ATO outputs are served by two plug-and-play MX-150 connectors, while two high-amp J Case outputs (rated 20 to 50A) handle larger loads, so a single block can cover all of the circuit-protection needs of a typical add-on system. Every output protects connected circuits from accidental short circuits to frame ground or battery negative and from overload events.
The block is built for harsh environments with 100% non-ferrous, corrosion-resistant materials and stainless steel self-locking hardware throughout. A snap-on, IP-rated fuse cover protects the positive terminals and ensures the device is ignition protected to ISO 8846 in potentially explosive environments, and recessed cover locations accept circuit-identification and function labels. Optional busbars provide space-saving connections to other devices such as the TH Series relays. It is made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- Eight low-amp ATO outputs on two plug-in MX-150 connectors
- Two high-amp J Case outputs rated 20 to 50A
- 200A total continuous current, 8 to 36V DC operating range
- Ignition protected to ISO 8846 with snap-on IP-rated fuse cover
- 100% non-ferrous, corrosion-resistant stainless steel self-locking hardware
- M6 power inputs and recessed cover label locations
- Optional busbars connect to TH Series relays and other devices
- 1 x CT Series Fuse Block (8 ATO + 2 J Case)
- Snap-on IP-rated fuse cover
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 200 A |
| Voltage Range | 8 - 36 V DC |
| Maximum Current per ATO Fuse | 22 A |
| Maximum Current per Low-Profile J Case Fuse | 50 A |
| Maximum Current per 4-Position MX-150 | 50 A |
Mechanical
| Fuse Positions | 10 (8 ATO + 2 J Case) |
| Low-Amp Output Connectors | Two MX-150 plug-in connectors |
| Maximum Wire Gauge, MX-150 Connector | 14 AWG |
| Power Inputs | M6 |
| Ignition Protection | Yes, ISO 8846 |
