EGIS
EGIS Dual Power Post, Two M10 Studs, With Cover
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

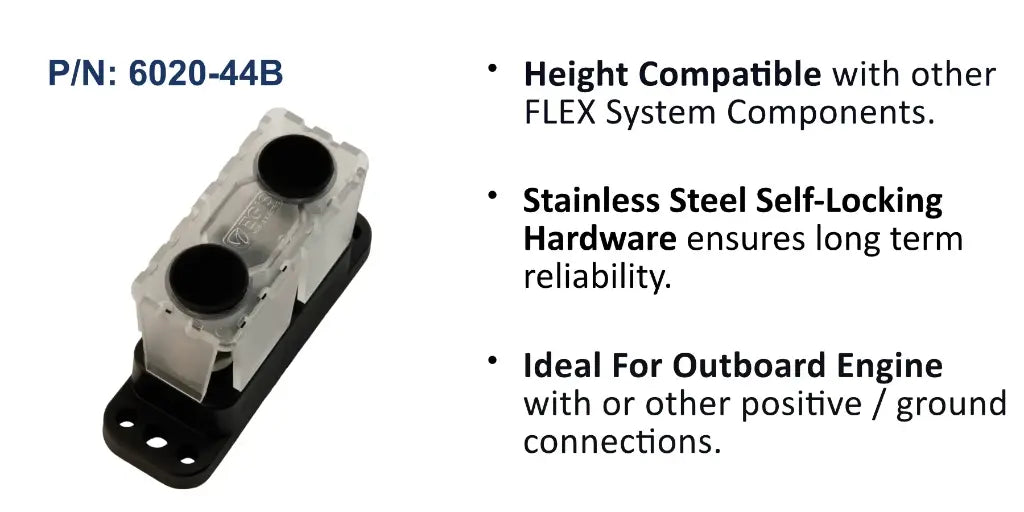

The EGIS Dual Power Post pairs two M10 (3/8 inch) studs in a single housing with an integrated cover, making outboard motor cable connections straightforward where matched large studs are needed for both polarities. The tin-plated copper conductors deliver minimal voltage drop under high current.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability. Break-away tabs allow cable access where terminal diameter interferes with the cover.
PRODUCT DETAILS
- Two M10 (3/8 inch) studs
- Integrated cover with break-away tabs
- Matched large studs for both polarities
- Suited to outboard motor cable connections
- Tin-plated copper for minimal voltage drop
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- Dual Power Post, two M10
- Integrated cover
- Stainless steel terminal hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Studs | 2 x M10 (3/8 inch) |
| M10 Nut Torque | 120 in-lbs (13.6 N-m) recommended, 140 in-lbs (15.8 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| Cover | Integrated |
