EGIS
EGIS e-Series 350A Battery Selector Switch, Off/1/Both/2
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

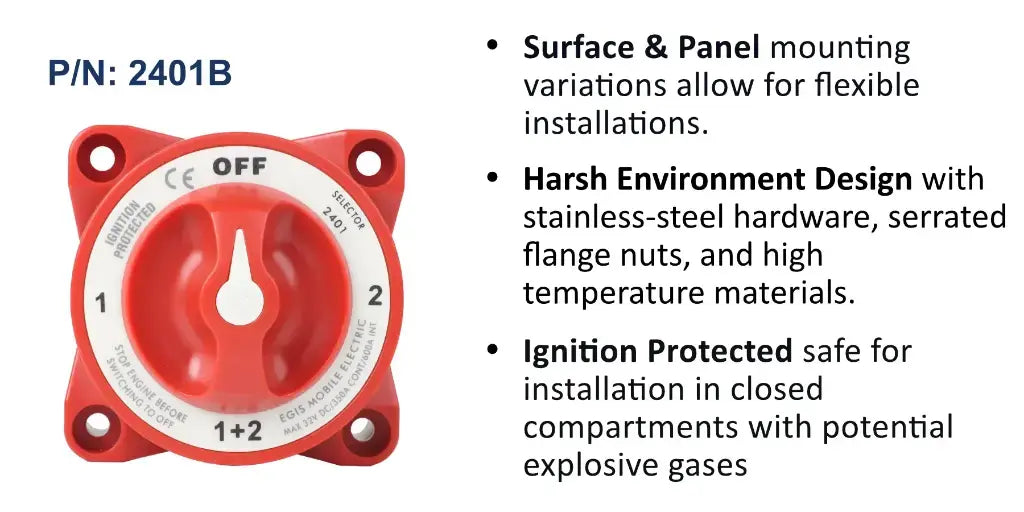

The EGIS e-Series 2401 is a medium-duty four-position battery selector switch rated at 350A continuous and 600A intermittent. Its Off/1/Both/2 positions let you select battery bank 1, bank 2, combine both, or isolate all power, making it ideal for managing dual-battery installations in 12V and 24V systems.
Rated to 32-48V DC and sealed to IP66, the switch is ignition protected and built for harsh, high-vibration environments. Serrated flange lock-nuts resist cable-terminal loosening, and surface and rear-panel mounting options make it a straightforward drop-in replacement for legacy OEM switches. Backed by a 4-year warranty.
PRODUCT DETAILS
- Four-position Off/1/Both/2 battery selection
- 350A continuous, 600A intermittent current rating
- Manages two battery banks from one switch
- 32-48V DC rating suits 12V and 24V systems
- Ignition protected, sealed to IP66
- Surface and rear-panel mounting options
- Drop-in replacement for legacy OEM switches
- 4-year warranty
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 350 A |
| Intermittent Current | 600 A |
| Max Voltage | 32-48 V DC |
| Live Switching Rating | 25 A |
Mechanical
| Actuator | Rotary selector (Off/1/Both/2) |
| Mounting | Surface and rear panel |
| Mounting Hole Screws | 1/4" (M6) |
| Ingress Protection | IP66 |
| Ignition Protected | Yes |
