EGIS Feed Through Terminal, M8 (5/16 inch), Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

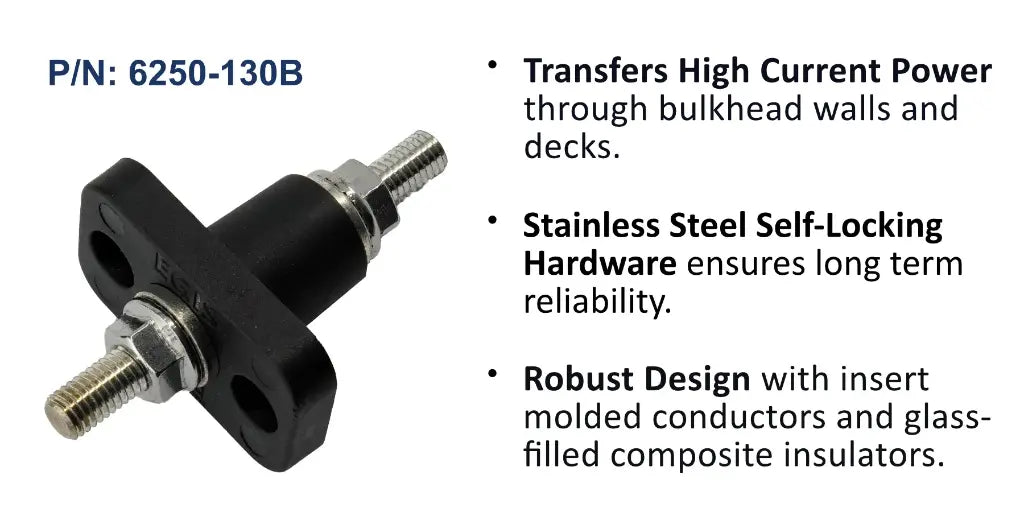

The EGIS Feed Through Terminal transfers high-current power through bulkhead walls and decks via an M8 (5/16 inch) insert-molded tin-plated copper conductor, rated to 250A at up to 80Vdc. The black housing identifies the negative side, and the base supports full sealing with a bedding compound or customer-supplied gasket to achieve an IP66, IP67 and IP6K9K ingress rating once the cut-out is sealed.
The glass-filled composite insulator and stainless steel self-locking hardware ensure long-term reliability, and the 7/8 inch (22mm) bulkhead mounting hole makes installation straightforward. Two size and colour options simplify outboard motor cable connections by matching the correct polarity.
PRODUCT DETAILS
- 250A rated, 80Vdc maximum
- M8 (5/16 inch) tin-plated copper conductor
- Passes high current through bulkheads and decks
- Black housing for negative side identification
- IP66 / IP67 / IP6K9K when cut-out sealed
- 7/8 inch (22mm) bulkhead mounting hole
- Stainless steel self-locking hardware
- Feed Through Terminal, M8, black
- Stainless steel hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Amperage | 250A |
| Maximum Voltage | 80Vdc |
Mechanical
| Stud | M8 (5/16 inch) |
| Colour | Black |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Bulkhead Hole Diameter | 7/8 inch (22mm) |
| Conductor Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
Environmental
| Operating Temperature | -40C to 125C |
| Ingress Protection | IP66 / IP67 / IP6K9K (cut-out to be sealed by installer) |
