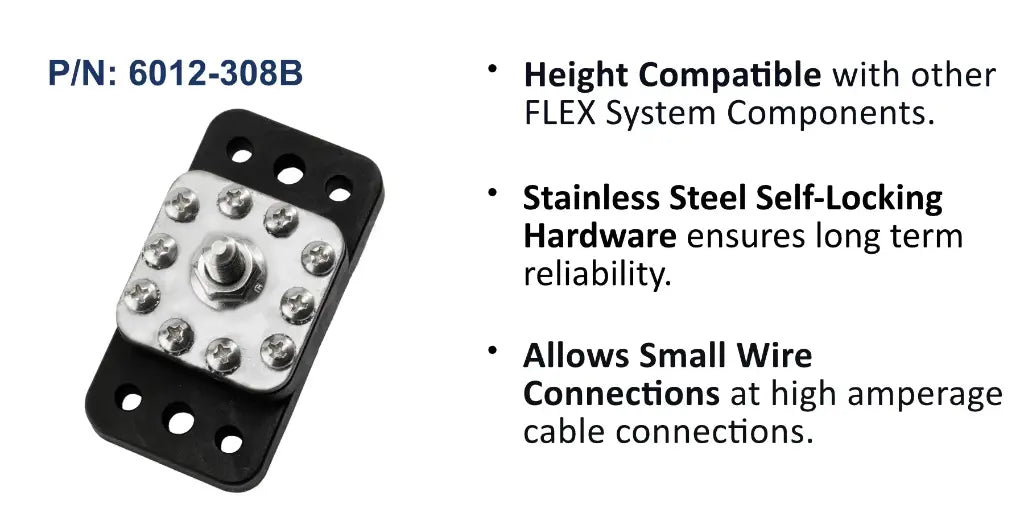

EGIS Power Post Plus, M8 (5/16 inch) Stud with 10 M4 Screw Terminals
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS Power Post Plus combines a single M8 (5/16 inch) stud for a heavy main cable with ten M4 (#8) screw terminals for low-current branch circuits, giving a compact one-piece feed and distribution point. The tin-plated copper construction delivers superior electrical performance with minimal voltage drop.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability under vibration. The profile is FLEX system height compatible for connection to other EGIS FLEX components.
PRODUCT DETAILS
- One M8 (5/16 inch) stud plus ten M4 (#8) screw terminals
- Combined high-current feed and branch distribution
- Insert-molded stud connection for durability
- Tin-plated copper for minimal voltage drop
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- FLEX system height compatible
- Power Post Plus, M8 with 10 M4 screw terminals
- Stainless steel terminal hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Main Stud | M8 (5/16 inch) |
| Screw Terminals | 10 x M4 (#8) |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| FLEX System Compatible | Yes |
