EGIS Power Post, M8 (5/16 inch) Stud
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

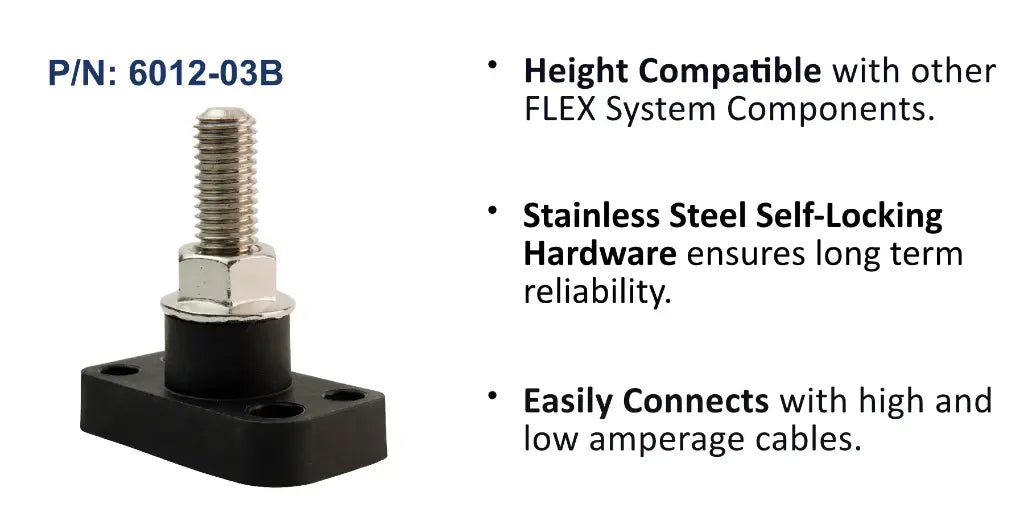

The EGIS Power Post provides a single M8 (5/16 inch) stud on a robust insert-molded base, giving a common high-current connection point for joining heavier cable terminations. The tin-plated copper construction delivers superior electrical performance with minimal voltage drop, and the maximum amperage is determined by the attached cables.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability under vibration. The profile is FLEX system height compatible for connection to other EGIS FLEX components.
PRODUCT DETAILS
- Single M8 (5/16 inch) stud
- Insert-molded stud connection for durability
- Tin-plated copper for minimal voltage drop
- Amperage limited only by attached cables
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- FLEX system height compatible
- Power Post, M8 (5/16 inch)
- Stainless steel terminal hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Stud | M8 (5/16 inch) |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| FLEX System Compatible | Yes |
