EGIS Mini Power Post, M6 (1/4 inch) Stud
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

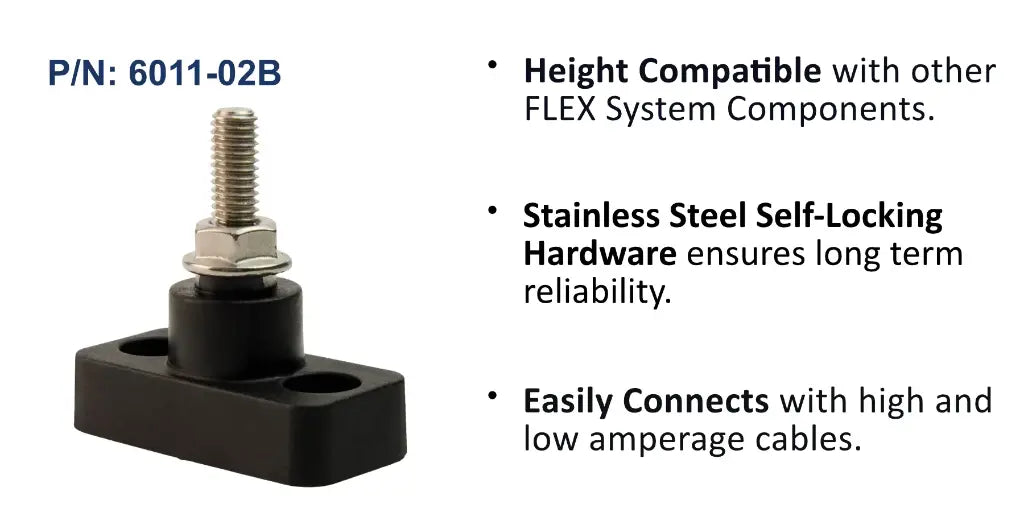

The EGIS Mini Power Post in its M6 (1/4 inch) form provides a single stud on a robust insert-molded base, giving a common connection point for joining multiple cable terminations. The tin-plated copper construction delivers minimal voltage drop, and the maximum amperage is determined by the attached cables.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability. The low profile is FLEX system height compatible for connection to other EGIS FLEX components.
PRODUCT DETAILS
- Single M6 (1/4 inch) stud
- Insert-molded stud connection for durability
- Tin-plated copper for minimal voltage drop
- Amperage limited only by attached cables
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- FLEX system height compatible
- Mini Power Post, M6 (1/4 inch)
- Stainless steel terminal hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Stud | M6 (1/4 inch) |
| M6 Nut Torque | 80 in-lbs (9.0 N-m) recommended, 100 in-lbs (11.3 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| FLEX System Compatible | Yes |
