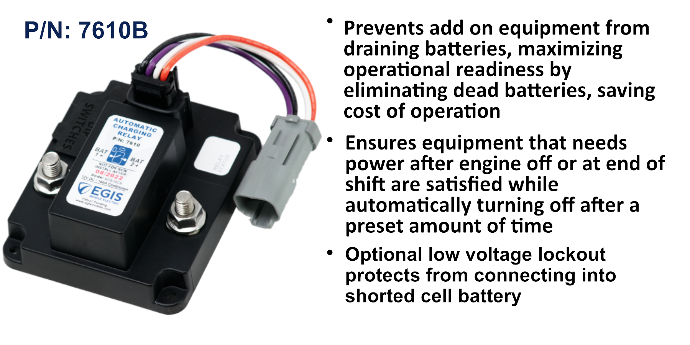

EGIS 7610 Programmable ACR Automatic Charging Relay 160A 12V EGIS 7610 Programmable ACR Automatic Charging Relay 160A 12V
EGIS 7610 Programmable ACR Automatic Charging Relay 160A 12V

EGIS

EGIS Programmable ACR Automatic Charging Relay 160A 12V

£187.85
Tax included. Shipping calculated at checkout.
7610
Programmable 160A automatic charging relay for 12V systems. Combines two battery banks while charging and isolates them when no charge source is present, with an ultra-low 1.3mA off-state draw and sealed, ignition-protected construction.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS 7610 is a TH3-Series automatic charging relay (ACR) rated at 160A continuous for 12V electrical systems. It automatically combines a start and auxiliary battery when a charge source is present, then isolates them once charging stops, so the engine-start battery is always protected from being drained by house loads.

An ultra-low off-state current draw of 1.3mA (versus 7-10mA on typical ACRs) means it will not deplete batteries during extended downtime. A sealed enclosure, stainless-steel hardware and high-temperature materials allow mounting almost anywhere, while integrated thermal-overload protection and an optional shorted-cell lock-out guard the system against cascading faults. Programmable voltage thresholds are set via top-side dip switches, and LED diagnostics report relay, voltage and start-isolation status. The unit ships with a Deutsch/Amphenol DTM connector harness and also accepts Molex MX-150 and direct wire-lead connections.

PRODUCT DETAILS

  • 160A continuous current rating for 12V systems
  • Automatic combine and isolate to protect the start battery
  • Ultra-low 1.3mA off-state current draw
  • Programmable voltage thresholds via top-side dip switches
  • LED diagnostics for relay, voltage and start-isolation status
  • Sealed construction with stainless-steel self-locking hardware
  • Integrated thermal-overload protection and shorted-cell lock-out
  • Supplied with Deutsch DTM connector harness (MX-150 and wire-lead options)
  • 1 x EGIS 7610 automatic charging relay
  • Deutsch/Amphenol DTM connector harness

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current160 A
Voltage Range8-18 V DC
Interrupt Current240 A
Off-State Current Draw1.3 mA
ACR Closing Voltage12.9-13.6 V DC
ACR Opening Voltage12.1-12.8 V DC

No videos available for this product.

What voltage systems does the 7610 ACR support?
It is designed for 12V systems, with a working voltage range of 8 to 18V DC.
How much current does it draw when off?
Just 1.3 mA in its off state, far lower than typical ACRs at 7 to 10 mA, so it will not deplete the batteries during extended downtime.
What is the current rating?
160 A continuous, with a 240 A interrupt rating.
How is it wired in?
It ships with a Deutsch/Amphenol DTM connector harness and also accepts Molex MX-150 and direct wire-lead connections.
