EGIS PT Series Time Delay Relay 30A 12V (Bulk Pack)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

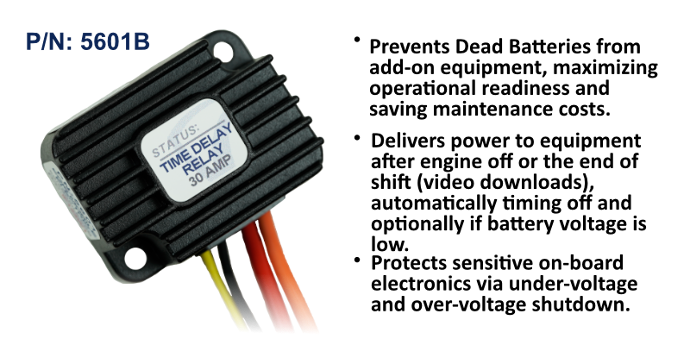

The EGIS 5601 is a compact PT-Series time delay relay (TDR) rated at 30A for 12V electrical systems. It delivers power to add-on equipment after the engine is switched off or at the end of a shift, then automatically times off after a preset delay, or earlier if battery voltage drops too low. This prevents add-on loads from draining the battery and protects sensitive on-board electronics through under-voltage and over-voltage shutdown.
An ultra-low off-state current draw of 1.3mA means it will not deplete the battery during downtime. The off time delay is adjustable from 5 seconds to 8 hours via dip switch, including a convenient short test setting, and multi-colour LEDs provide diagnostic feedback for output status and pending off events. The sealed enclosure resists dust and moisture, cross-linked wire protects against chafing and high temperatures, and integrated fusing plus over-temperature shutdown protect the circuit. A compact footprint suits space-restricted installations, and the unit is supplied with 16-inch fused and 18-inch control flying wires for installation flexibility. This is the bulk-packed version supplied without retail packaging.
PRODUCT DETAILS
- 30A current rating for 12V systems
- Adjustable off time delay from 5 seconds to 8 hours via dip switch
- Battery-saver disconnect protects against dead batteries
- Ultra-low 1.3mA off-state current draw
- Under-voltage and over-voltage shutdown protection
- Integrated fusing and over-temperature shutdown
- Sealed, compact construction with cross-linked wire and LED diagnostics
- Supplied with 16-inch fused and 18-inch control flying wires
- 1 x EGIS 5601 time delay relay (bulk packed)
- 16-inch fused power flying wire
- 18-inch control flying wire
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 30 A |
| Voltage Range | 8-18 V DC |
| Off-State Current Draw | 1.3 mA |
| Under-Voltage Protection | 11-12 V DC |
| Over-Voltage Protection | 17 V DC |
Timing
| Time Delay Range | 5 seconds to 8 hours (dip switch) |
