EGIS XD Single NMEA 2000 Relay 500A, Knobs
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

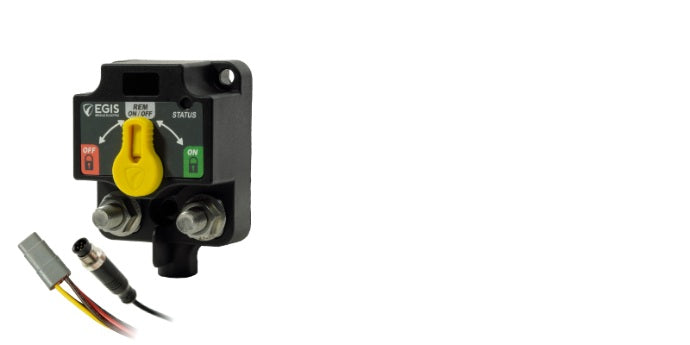

The EGIS 9811-4500 is a single XD Series relay with native NMEA 2000 control, allowing remote battery switching and monitoring directly from a compatible MFD or network display. Rated 500A continuous (1500A cranking) for 12V and 24V systems, it brings programmable power management onto the boat's NMEA 2000 backbone.
A bi-stable solenoid holds either state with no current draw, a front-facing manual override knob provides local control, and the sealed IP67/IP6K9K housing with stainless-steel hardware suits harsh marine environments. Supplied with a 4-position DT connector for NMEA 2000 integration.
PRODUCT DETAILS
- Native NMEA 2000 control and monitoring
- 500A continuous / 1500A cranking current
- Bi-stable solenoid holds state with no current draw
- Manual override knob for local control
- Programmable for relay, disconnect or ACR duty
- Sealed to IP67/IP6K9K with stainless-steel hardware
- For 12V and 24V systems
- 4-position DT connector for NMEA 2000
- 1 x EGIS XD NMEA 2000 relay
- 4-position DT connector
- Protective terminal cover and mounting hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| Network | NMEA 2000 |
Mechanical
| Connector | 4-position DT |
| Mechanical Switching Life | 1,000,000 cycles |
| Ingress Protection | IP67 / IP6K9K |
