EGIS XD Flex L Lithium ACR Single 500A 12/24V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

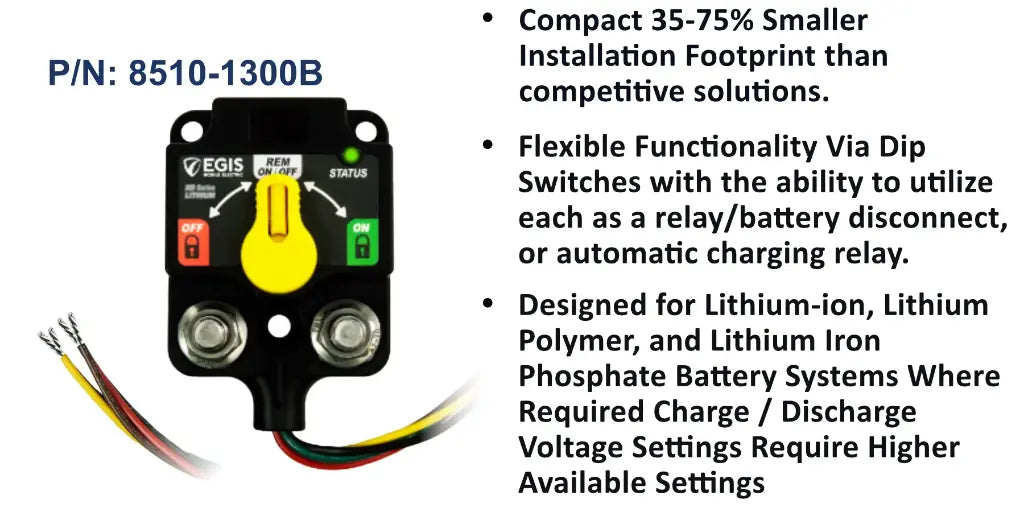

The EGIS 8510-1300 is a single-circuit XD Series Flex L relay that can be programmed as a voltage sensing relay or automatic charging relay, with thresholds tuned for lithium battery chemistries that require higher charge and discharge voltage settings. Built on the XD bi-stable solenoid platform, it delivers 500A continuous current and up to 1500A cranking in a footprint far smaller than conventional solutions, combining and isolating battery banks automatically while drawing only 1.3mA in its off state, around 90-95% less than comparable multi-device systems.
A front-facing 3-position manual override knob lets the relay be forced open or closed and locked in either state, with a clearly visible front LED and a remote LED that mirrors it for status at a glance. The sealed enclosure is rated to IP67/IP6K9K with an integrated Gore-Tex vent that regulates internal pressure for long life in harsh environments, while stainless-steel studs and self-locking flanged nuts accept 1/4-20 or M6 hardware. Functions are configured via dip switches under the included protective cover, and the unit terminates in flying tinned wire leads. A weatherproof 40-circuit label sheet and the protective terminal cover are supplied.
PRODUCT DETAILS
- Single-circuit Flex L VSR/ACR tuned for lithium battery voltage thresholds
- 500A total continuous current and 1500A maximum cranking current
- Wide 8-36V DC operating range for 12V and 24V systems
- Ultra-low 1.3mA off-state draw via advanced bi-stable solenoid design
- 3-position manual override knob locks the relay open or closed
- Front and remote LED status indication, programmable via dip switches
- Sealed to IP67/IP6K9K with integrated Gore-Tex vent and stainless studs (1/4-20 / M6)
- Flying tinned wire leads with protective cover and 40-circuit label sheet included
- 1 x EGIS 8510-1300 single XD Flex L relay with flying tinned wire leads
- 3-position manual override knob (fitted)
- Protective terminal cover
- 40-circuit weatherproof label sheet
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Max Cranking Current | 1500 A |
| Voltage Range | 8 - 36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Tinned wire leads |
| Ingress Protection | IP67 / IP6K9K |
