EGIS XD Flex 2 Relay/ACR Single 500A 12/24V (DTM)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS XD Flex 2 single relay is a high-current bi-stable device for 12V and 24V DC systems that serves as an improved replacement for legacy solenoids and remote battery switches. It is wire-for-wire compatible with Blue Sea ML-Series solenoid and remote battery switch products, and can be set through dip switches to operate as a basic switched relay or as an automatic charging relay. It carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC range.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and forward-facing stainless steel cable-lug studs that accept 1/4-20 or M6 hardware and make landing large cables easy. The bi-stable solenoid draws just 1.3mA in the off state, and a 3-position manual override knob lets the relay be forced open or closed and locked there. A front-facing LED reports status with a remote LED replica output, and the dip switches sit under an included protective cover with label recesses. This version uses a sealed 6-position Deutsch DTM connector that is pin-for-pin compatible with legacy ML-Series bi-stable relays.
PRODUCT DETAILS
- High-current single-circuit bi-stable relay, configurable as relay or ACR via dip switches
- Wire-for-wire compatible with Blue Sea ML-Series solenoids and remote battery switches
- 500A continuous and 1500A cranking rating for 12V and 24V systems
- 3-position manual override knob locks the relay open or closed
- Sealed 6-position Deutsch DTM connector, ML-Series compatible
- Ultra-low 1.3mA off-state current draw with sealed IP67 / IP6K9K construction
- Forward-facing stainless steel cable-lug studs accepting 1/4-20 / M6 hardware

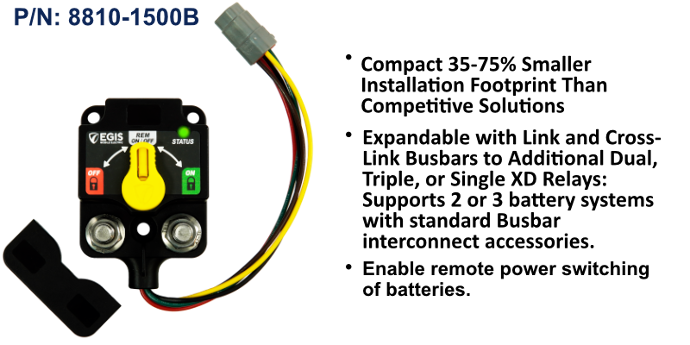

- EGIS XD Series Flex 2 single-circuit relay with 6-position Deutsch DTM connector
- 3-position manual override knob
- Protective terminal cover
- Stainless steel studs and self-locking flanged nuts
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A |
| Max Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DTM (6-position) |
| Ingress Protection | IP67 / IP6K9K |
